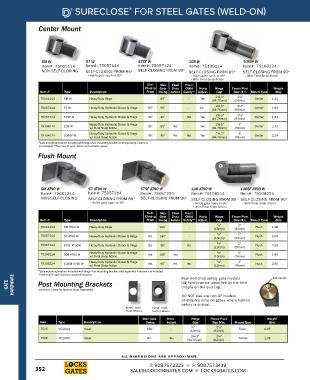

P. 354
SURECLOSE FOR STEEL GATES (WELD-ON)
®
Center Mount
SM W 57 W 57SF W 108 W 108SF W
Item#: 75001114 Item#: 75057114 Item#: 75057124 Item#: 75108114 Item#: 75108124
NON SELF-CLOSING SELF-CLOSING FROM 85° SELF-CLOSING FROM 90° SELF-CLOSING FROM 85° SELF-CLOSING FROM 90°
• Holds gate open at 90° • Holds gate open at 90° • With Final Snap Action
• With Final Snap Action
Self- Max Final Pool/
Closing Gate Snap Child Horiz Hinge Fence Post Weight
Item #* Type Description From Swing Action Safety** Adjust. Gap Size Min. Mount Type (lbs)
2½-3" 2½"
75001114 SM W Heavy-Duty Hinge - 90˚ - - Yes Center 1.41
(64-76mm) (64mm)
2½-3" 2½"
75057114 57 W Heavy-Duty Hydraulic Closer & Hinge 85˚ 90˚ - - Yes Center 1.63
(64-76mm) (64mm)
2½-3" 2½"
75057124 57SF W Heavy-Duty Hydraulic Closer & Hinge 90˚ 90˚ - Yes Yes Center 1.63
(64-76mm) (64mm)
Heavy-Duty Hydraulic Closer & Hinge 2½-3" 3"
75108114 108 W 85˚ 90˚ Yes - Yes Center 2.14
w/ Final Snap Action (64-76mm) (76mm)
Heavy-Duty Hydraulic Closer & Hinge 2½-3" 3"
75108124 108SF W 90˚ 90˚ Yes Yes Yes Center 2.14
w/ Final Snap Action (64-76mm) (76mm)
*Gate mounting brackets included with hinge. Post mounting brackets sold separately. Fasteners
not included. **Use only SF type closers on pool/safety gates.
Flush Mount
SM AT90 W 57 AT90 W 57SF AT90 W 108 AT90 W 108SF AT90 W
Item#: 75001214 Item#: 75057214 Item#: 75057224 Item#: 75108214 Item#: 75108224
NON-SELF-CLOSING SELF-CLOSING FROM 85° SELF-CLOSING FROM 90° SELF-CLOSING FROM 85° SELF-CLOSING FROM 90°
• Holds gate open at 90° • Holds gate open at 90° • With Final Snap Action
• With Final Snap Action
Self- Max Final Pool/
Closing Gate Snap Child Horiz Hinge Fence Post Weight
Item #* Type Description From Swing Action Safety** Adjust. Gap Size Min. Mount Type (lbs)
½" 2"
75001214 SM AT90 W Heavy-Duty Hinge - 180˚ - - - Flush 1.86
(13mm) (50mm)
75057214 57 AT90 W Heavy-Duty Hydraulic Closer & Hinge Yes 180˚ - - - ½" 2" Flush 2.09
(13mm) (50mm)
75057224 57SF AT90W Heavy-Duty Hydraulic Closer & Hinge Yes 90˚ - Yes - ½" 2" Flush 2.09
(13mm) (50mm)
75108214 108 AT90 W Heavy-Duty Hydraulic Closer & Hinge Yes 180˚ Yes - - ½" 3" Flush 2.60
w/ Final Snap Action (13mm) (76mm)
75108224 108SF AT90 W Heavy-Duty Hydraulic Closer & Hinge Yes 90˚ Yes Yes - ½" 3" Flush 2.60
w/ Final Snap Action (13mm) (76mm)
*Gate mounting brackets included with hinge. Post mounting brackets sold separately. Fasteners not included.
**Use only SF type closers on pool/safety gates.
HARDWARE Aluminum Screw-On Options (Sold Separately) dimple on the end cap.
GATE Post Mounting Brackets Pool and child safety gate models 5th dimple
(SF type) can be identified by the fifth
DO NOT use any non-SF models
(4-dimples only) on gates where human
safety is critical.
Item#: 7525 Item#: 7526
Flush Mount Center Mount
Max Gate Horiz Hinge Fence Post Weight
Item Type Description Swing Adjust. Gap Size Min. Mount Type (lbs)
½" 2½"
7525 0510-04 Steel 180˚ - Flush 0.35
(13mm) (64mm)
2½-3" 2½"
7526 0510-05 Steel 90˚ Yes Center 1.08
(64-76mm) (64mm)
A LL DIMENSIONS ARE APPR O XIM ATE .
