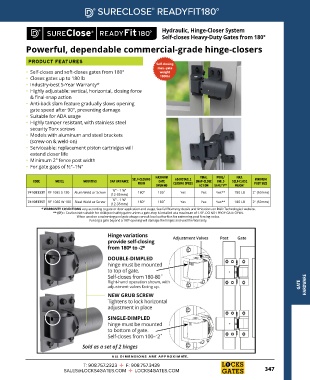

Page 349 - CATALOG

SURECLOSE READYFIT180°
®

Hydraulic, Hinge-Closer System
Self-closes Heavy-Duty Gates from 180°

Powerful, dependable commercial-grade hinge-closers

PRODUCT FEATURES
Self closing
max. gate
• Self-closes and soft-closes gates from 180° weight
• Closes gates up to 180 lb 180lbs
• Industry-best 5-Year Warranty*
• Highly adjustable: vertical, horizontal, closing force
& final-snap action
• Anti-back slam feature gradually slows opening
gate speed after 90°, preventing damage
• Suitable for ADA usage
• Highly tamper resistant, with stainless steel
security Torx screws
• Models with aluminum and steel brackets
(screw-on & weld-on)
• Serviceable: replacement piston cartridges will
extend closer life
• Minimum 2" fence post width
• For gate gaps of ½"–1⅜"

MAXIMUM FINAL POOL/ MAX.
SELF-CLOSING ADJUSTABLE MINIMUM
CODE MODEL MOUNTING GAP VARIANCE GATE SNAP-CLOSE CHILD SELF-CLOSE
FROM CLOSING SPEED POST SIZE
OPENING ACTION SAFETY** WEIGHT
½" - 1 ⅜"
74108333T RF 108S S 180 Alum Weld or Screw 180° 180˚ Yes Yes Yes** 180 LB 2" (50mm)
(12-35mm)
½" - 1 ⅜"
74108335T RF 108S W 180 Steel Weld or Screw 180° 180˚ Yes Yes Yes** 180 LB 2" (50mm)
(12-35mm)
* WARRANTY CONDITIONS vary according to gate or door application and usage. See full Warranty details and limitations on D&D Technologies’ website.
** (SF) = Caution Not suitable for child/pool safety gates unless a gate-stop is installed at a maximum of 170º. DO NOT PROP GATE OPEN.
When used on a swimming pool gate always consult local authorities for swimming pool fencing codes.
Forcing a gate beyond a 180º opening will damage the hinges and void the Warranty.

HARDWARE
GATE

A LL DIMENSIONS ARE APPR O XIM ATE .
