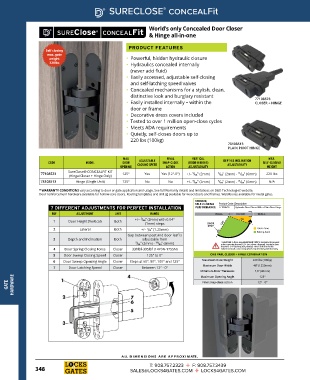

Page 350 - CATALOG
P. 350
SURECLOSE concealFit
®
World’s only Concealed Door Closer
& Hinge all-in-one
PRODUCT FEATURES
Self closing
max. gate
weight • Powerful, hidden hydraulic closure
220lbs • Hydraulics concealed internally
(never add fluid)
• Easily accessed, adjustable self-closing
and self-latching speed valves
• Concealed mechanisms for a stylish, clean,
distinctive look and burglary resistant
• Easily installed internally – within the 77108523
CLOSER + HINGE
door or frame
• Decorative dress covers included
• Tested to over 1 million open-close cycles
• Meets ADA requirements
• Quietly, self-closes doors up to
220 lbs (100kg)
78108513
PLAIN PIVOT HINGE
MAX ADJUSTABLE FINAL VERTICAL DEPTH & INCLINATION MAX.
CODE MODEL DOOR CLOSING SPEED SNAP-CLOSE (DOOR HIEIGHT) ADJUSTABILITY SELF-CLOSING
OPENING ACTION ADJUSTABILITY WEIGHT
SureClose® CONCEALFIT KIT
77108523 (Hinge/Closer + Hinge Only) 125° Yes Yes (12°-0°) +/– ⁵/₆₄" (2mm) ⁵/₆₄" (2mm) - ¹⁵/₆₄" (6mm) 220 lbs
78108513 Hinge (Single Unit) 125° No No +/– ⁵/₆₄" (2mm) ⁵/₆₄" (2mm) - ¹⁵/₆₄" (6mm) N/A
* WARRANTY CONDITIONS vary according to door or gate application and usage. See full Warranty details and limitations on D&D Technologies’ website.
Door reinforcement hardware available for hollow-core doors. Routing templates and drill jig available for wood doors and frames. Weld boxes available for metal gates.
7 DIFFERENT ADJUSTMENTS FOR PERFECT INSTALLATION
REF ADJUSTMENT UNIT RANGE
1 Door Height (Vertical) Both +/– ⁵/₆₄" (2mm) with 0.04"
(1mm) steps
2 Lateral Both +/– 1/16" (1.25mm)
Gap between post and door leaf is
3 Depth and Inclination Both adjustable from
⁵/₆₄" (2mm) - ¹⁵/₆₄" (6mm)
4 Door Spring Closing Force Closer 330lbf-395lbf (1470N-1755N)
5 Door Sweep Closing Speed Closer 125° to 0°
6 Door Sweep Opening Angle Closer Steps at 60°, 80°, 100° and 125°
7 Door Latching Speed Closer Between 12° - 0°
HARDWARE
GATE
A LL DIMENSIONS ARE APPR O XIM ATE .
