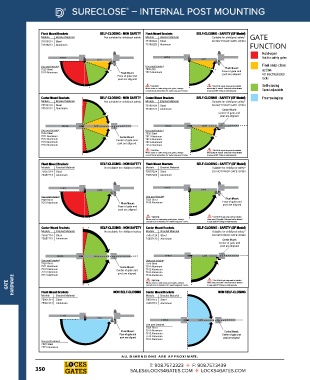

Page 352 - CATALOG

SURECLOSE – INTERNAL POST MOUNTING
®

Flush Mount Brackets SELF-CLOSING - NON SAFETY Flush Mount Brackets SELF-CLOSING - SAFETY (SF Model)
Models Bracket Material Not suitable for child/pool safety Models Bracket Material Suitable for child/pool safety* GATE
75108214 Steel 75108224 Steel DO NOT PROP GATE OPEN
75108213 Aluminum 75108223 Aluminum FUNCTION
Hold-open
FENCE FENCE Not for safety gates
GATE GATE
Use post bracket: Use post bracket: Flush Mount: Final snap-close
7525 Steel 7525 (W) Face of gate and action
7515 Aluminum Flush Mount: 7515 Aluminum
Face of gate and post are aligned. For electric/coded
post are aligned. locks
* CAUTION: * CAUTION: A gate stop must be installed Self-closing
When used on swimming pool gates, always when using SF models. Gate must not be allowed
consult local authorities for swimming pool Codes. to open past 90˚. Doing so voids warranty. Speed adjustable
Center Mount Brackets SELF-CLOSING - NON SAFETY Center Mount Brackets SELF-CLOSING - SAFETY (SF Model) Free-swinging
Models Bracket Material Not suitable for child/pool safety Models Bracket Material Suitable for child/pool safety*
75108114 Steel 75108124 Steel DO NOT PROP GATE OPEN
75108113 Aluminum 75108123 Aluminum Center Mount:
Center of gate and
post are aligned.
FENCE GATE FENCE GATE
Use post bracket: Use post bracket:
7526 Steel 7526 Steel
7511 Aluminum Center Mount: 7511 Aluminum
7512 Aluminum Center of gate and 7512 Aluminum
7513 Aluminum post are aligned. 7513 Aluminum
7514 Aluminum 7514 Aluminum
* CAUTION: * CAUTION: A gate stop must be installed
When used on swimming pool gates, always when using SF models. Gate must not be allowed
consult local authorities for swimming pool Codes. to open past 90˚. Doing so voids warranty.
Flush Mount Brackets SELF-CLOSING - NON SAFETY Flush Mount Brackets SELF-CLOSING - SAFETY (SF Model)
Models Bracket Material Not suitable for child/pool safety Models Bracket Material Suitable for child/pool safety*
75057214 Steel 75057224 Steel DO NOT PROP GATE OPEN
75057213 Aluminum 75057223 Aluminum

FENCE FENCE
GATE GATE
Use post bracket: Use post bracket:
7525 Steel 7525 Steel Flush Mount:
7515 Aluminum Flush Mount: 7515 Aluminum Face of gate and
Face of gate and post are aligned.
post are aligned.
* CAUTION: * CAUTION: A gate stop must be installed
When used on swimming pool gates, always when using SF models. Gate must not be allowed
consult local authorities for swimming pool Codes. to open past 90˚. Doing so voids warranty.
Center Mount Brackets SELF-CLOSING - NON SAFETY Center Mount Brackets SELF-CLOSING - SAFETY (SF Model)
Models Bracket Material Not suitable for child/pool safety Models Bracket Material Suitable for child/pool safety*
75057114 Steel 75057124 Steel DO NOT PROP GATE OPEN
75057113 Aluminum 75057123 Aluminum Center Mount:
Center of gate and
post are aligned.
FENCE GATE FENCE GATE
Use post bracket: Use post bracket:
7526 Steel 7526 Steel
7511 Aluminum Center Mount: 7511 Aluminum
7512 Aluminum Center of gate and 7512 Aluminum
7513 Aluminum post are aligned. 7513 Aluminum
7514 Aluminum
7514 Aluminum
HARDWARE Flush Mount Brackets NON SELF-CLOSING consult local authorities for swimming pool Codes. NON SELF-CLOSING
GATE * CAUTION: * CAUTION: A gate stop must be installed
when using SF models. Gate must not be allowed
When used on swimming pool gates, always
to open past 90˚. Doing so voids warranty.
Center Mount Brackets
Bracket Material
Models
75001114
Steel
75001214 Steel Models Bracket Material
75001213 Aluminum 75001113 Aluminum
FENCE
GATE
FENCE GATE
Use post bracket:
7526 Steel
Flush Mount: 7511 Aluminum Center Mount:
Face of gate and 7512 Aluminum Center of gate and
post are aligned 7513 Aluminum post are aligned
7514 Aluminum
Use post bracket:
7525 Steel
7515 Aluminum
A LL DIMENSIONS ARE APPR O XIM ATE .
