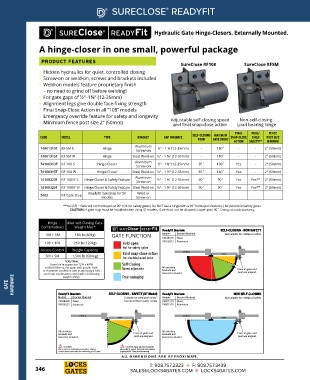

Page 348 - CATALOG

SURECLOSE READYFIT
®

Hydraulic Gate Hinge-Closers. Externally Mounted.

A hinge-closer in one small, powerful package

PRODUCT FEATURES
SureClose RF108 SureClose RFSM
• Hidden hydraulics for quiet, controlled closing
• Screw-on or weld-on, screws and brackets included
• Weld-on models feature proprietary finish
– no need to grind off before welding!
• For gate gaps of ½"–1⅜" (12-35mm)
• Alignment legs give double face-fixing strength
• Final Snap-Close Action in all “108” models
• Emergency override feature for safety and longevity
Non-self-closing.
• Minimum fence post size 2" (50mm) Adjustable self-closing speed Load bearing hinge
and final snap-close action
FINAL POOL/ FENCE
SELF-CLOSING MAXIMUM
CODE MODEL TYPE BRACKET GAP VARIANCE SNAP-CLOSE CHILD POST SIZE
FROM GATE SWING
ACTION SAFETY** MINIMUM
Aluminum
74001313T RF SM S Hinge ½" - 1 ⅜"(12-35mm) - 180˚ - - 2" (50mm)
Screw-on
74001315T RF SM W Hinge Steel Weld-on ½" - 1 ⅜" (12-35mm) - 180˚ - - 2" (50mm)
Aluminum
74108313T RF 108 S Hinge/Closer ½" - 1⅜" (12-35mm) 85˚ 180˚ Yes - 2" (50mm)
Screw-on
74108315T RF 108 W Hinge/Closer Steel Weld-on ½" - 1 ½" (12-35mm) 85˚ 180˚ Yes - 2" (50mm)
Aluminum
74108323T RF 108SF S Hinge/Closer & Safety Feature ½" - 1 ⅜" (12-35mm) 90˚ 90˚ Yes Yes** 2" (50mm)
Screw-on
74108325T RF 108SF W Hinge/Closer & Safety Feature Steel Weld-on ½" - 1 ⅜" (12-35mm) 90˚ 90˚ Yes Yes** 2" (50mm)
7403 RF Gate Stop ReadyFit GateStop for SF Weld or
Models Screw-on

**Yes (SF) = Gate will not hold open at 90° (OK for safety gates). Do NOT use a hinge with a 90° hold-open feature (-) for pool/child safety gates.
CAUTION: A gate stop must be installed when using SF models. Gate must not be allowed to open past 90˚. Doing so voids warranty.
Hinge Max self-Closing Gate
Combinations Weight Max*
ReadyFit Brackets SELF-CLOSING - NON SAFETY
108 + SM 180 lb (80kg) GATE FUNCTION Models Bracket Material Not suitable for child/pool safety
74108315 Steel
108 + 108 260 lb (120kg) Hold-open 74108313 Aluminum
Not for safety gates
Access Control Weight Capacity FENCE
FENCE
GATE
SM + SM 1,500 lb (680kg) Final snap-close action GATE
For electric/coded locks
*CAUTION:
Based on max gate size 72”H x 40”W Self-closing
(1800x1000mm). For gates with greater HxW, Speed adjustable All mounting Face of gate and
Face of gate and
or if weather conditions such as wind play a role, brackets and post are aligned.
post are aligned.
use hinge combinations with higher self-closing Free-swinging fasteners included.
HARDWARE
weight ratings.
GATE
NON SELF-CLOSING
ReadyFit Brackets
Bracket Material
Suitable for child/pool safety*
Models
Models Bracket Material SELF-CLOSING - SAFETY (SF Model) ReadyFit Brackets Not suitable for child/pool safety
74108325 Steel DO NOT PROP GATE OPEN 74001315 Steel
74108323 Aluminum 74001313 Aluminum
FENCE
FENCE
FENCE FENCE
GATE
GATE
GATE GATE
All mounting All mounting
Face of gate and
Face of gate and
brackets and Face of gate and brackets and Face of gate and
post are aligned.
post are aligned.
fasteners included. post are aligned. fasteners included. post are aligned.
* CAUTION: * CAUTION: A gate stop must be installed
When used on swimming pool gates, always when using SF models. Gate must not be allowed
consult local authorities for swimming pool Codes. to open past 90˚. Doing so voids warranty.
A LL DIMENSIONS ARE APPR O XIM ATE .
