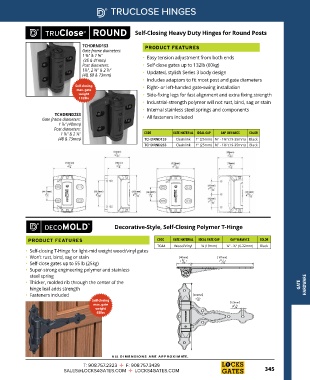

Page 347 - CATALOG

TRUCLOSE HINGES

Self-Closing Heavy Duty Hinges for Round Posts

TCHDRND1S3 PRODUCT FEATURES
Gate frame diameters:
1 ⅜" & 1 ⅝" • Easy tension adjustment from both ends
(35 & 41mm)
Post diameters: • Self-close gates up to 132lb (60kg)
1⅞", 2 ⅜" & 2 ⅞" • Updated, stylish Series 3 body design
(48, 60 & 73mm)
• Includes adaptors to fit most post and gate diameters
Self closing • Right- or left-handed gate-swing installation
Self closing
max. gate
max. gate
weight • Side-fixing legs for fast alignment and extra fixing strength
weight
132lbs
132lbs
• Industrial-strength polymer will not rust, bind, sag or stain
• Internal stainless steel springs and components
TCHDRND2S3
Gate frame diameters: • All fasteners included
1 ⅞" (48mm)
Post diameters:
1 ⅞" & 2 ⅞" CODE GATE MATERIAL IDEAL GAP GAP VARIANCE COLOR
(48 & 73mm) TCHDRND1S3 Chainlink 1" (25mm) ⅜” - 1⅜” (19-35mm) Black
TCHDRND2S3 Chainlink 1" (25mm) ⅜” - 1⅜” (19-35mm) Black

Decorative-Style, Self-Closing Polymer T-Hinge

PRODUCT FEATURES CODE GATE MATERIAL IDEAL GATE GAP GAP VARIANCE COLOR
TCA4 Wood/Vinyl ¾ (19mm) ¼” - ⅞” (6-22mm) Black
• Self-closing T-Hinge for light-mid weight wood/vinyl gates
• Won’t rust, bind, sag or stain 40mm 187mm
• Self-close gates up to 55 lb (25kg) 1 9 16 " 7 11 32 "
• Super-strong engineering polymer and stainless
steel spring
• Thicker, molded rib through the center of the GATE
hinge leaf adds strength HARDWARE
• Fasteners included 200mm
7
Self closing 7 8 " 6.5mm
max. gate 1 "
weight 4
55lbs

A LL DIMENSIONS ARE APPR O XIM ATE .
