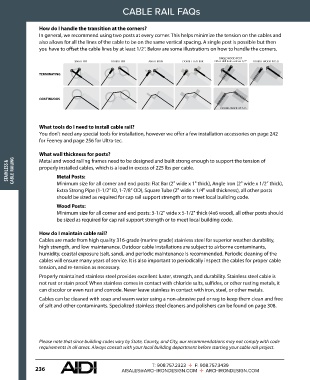

CABLE RAIL FAQs
6 1 2 7 3 8 4 9 1 6 1 6 10 7 2 2 7 3 8 3 8 4 9 4 9 10 10
How do I handle the transition at the corners?
In general, we recommend using two posts at every corner. This helps minimize the tension on the cables and
also allows for all the lines of the cable to be on the same vertical spacing. A single post is possible but then
11
9 you have to offset the cable lines by at least 1/2". Below are some illustrations on how to handle the corners.
7 11 11
5 9 9 SINGLE WOOD POST
7
7
3 SINGLE PIPE DOUBLE PIPE ANGLE IRON DOUBLE FLAT BAR Offset drill holes at least 1/2” DOUBLE WOOD POSTS
5
5
1 3 3
2 1 1
4 TERMINATING 2 4 2 4
6 11 6 6
8 9 8 8
10 7 10 10
12
12
12 5
3
1
2
CONTINUOUS 4
6
8
10 DOUBLE WOOD POSTS
12
What tools do I need to install cable rail?
You don't need any special tools for installation, however we offer a few installation accessories on page 242
for Feeney and page 256 for Ultra-tec.
What wall thickness for posts?
Metal and wood railing frames need to be designed and built strong enough to support the tension of
STAINLESS & CABLE RAILING properly installed cables, which is a load in excess of 225 lbs per cable.

Metal Posts:

Minimum size for all corner and end posts: Flat Bar (2" wide x 1" thick), Angle Iron (2" wide x 1/2" thick),
Extra Strong Pipe (1-1/2" ID, 1-7/8" OD), Square Tube (2" wide x 1/4" wall thickness), all other posts
should be sized as required for cap rail support strength or to meet local building code.
Wood Posts:
Minimum size for all corner and end posts: 3-1/2" wide x 5-1/2" thick (4x6 wood), all other posts should
be sized as required for cap rail support strength or to meet local building code.

How do I maintain cable rail?
Cables are made from high quality 316-grade (marine grade) stainless steel for superior weather durability,
high strength, and low maintenance. Outdoor cable installations are subject to airborne contaminants,
humidity, coastal exposure (salt, sand), and periodic maintenance is recommended. Periodic cleaning of the
cables will ensure many years of service. It is also important to periodically inspect the cables for proper cable
tension, and re-tension as necessary.
Properly maintained stainless steel provides excellent luster, strength, and durability. Stainless steel cable is
not rust or stain proof. When stainless comes in contact with chloride salts, sulfides, or other rusting metals, it
can discolor or even rust and corrode. Never leave stainless in contact with iron, steel, or other metals.
Cables can be cleaned with soap and warm water using a non-abrasive pad or rag to keep them clean and free
of salt and other contaminants. Specialized stainless steel cleaners and polishers can be found on page 308.

Please note that since building codes vary by State, County, and City, our recommendations may not comply with code
requirements in all areas. Always consult with your local building department before starting your cable rail project.
