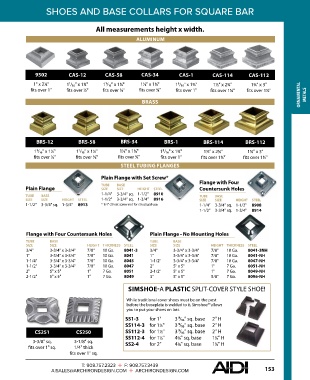

Page 155 - CATALOG

SHOES AND BASE COLLARS FOR SQUARE BAR

All measurements height x width.

ALUMINUM

9502 CAS-12 CAS-58 CAS-34 CAS-1 CAS-114 CAS-112

1" x 2¼" 1¹/₁₆" x 1¼" 1¹/₁₆" x 1¼" 1⅛" x 1¼" 1³/₁₆" x 1¾" 1½" x 2¾" 1¾" x 3"
fits over 1" fits over ½" fits over ⅝" fits over ¾" fits over 1" fits over 1¼" fits over 1½" ORNAMENTAL METALS

BRASS

BRS-12 BRS-58 BRS-34 BRS-1 BRS-114 BRS-112
1¹/₁₆" x 1¼" 1¹/₁₆" x 1¼" 1⅛" x 1¼" 1³/₁₆" x 1¾" 1½" x 2¾" 1¾" x 3"
fits over ½" fits over ⅝" fits over ¾" fits over 1" fits over 1¼" fits over 1½"
STEEL TUBING FLANGES

Plain Flange with Set Screw*
TUBE BASE Flange with Four
Plain Flange SIZE SIZE HEIGHT STEEL Countersunk Holes
1-1/4" 3-3/4" sq. 1-1/2" 8910
TUBE BASE TUBE BASE
SIZE SIZE HEIGHT STEEL 1-1/2" 3-3/4" sq. 1-3/4" 8916 SIZE SIZE HEIGHT STEEL
1-1/2" 3-3/4" sq. 1-3/4" 8913 * 1/4"-20 set screw not for structural use. 1-1/4" 3-3/4" sq. 1-1/2" 8908
1-1/2" 3-3/4" sq. 1-3/4" 8914

Flange with Four Countersunk Holes Plain Flange - No Mounting Holes

TUBE BASE TUBE BASE
SIZE SIZE HEIGHT THICKNESS STEEL SIZE SIZE HEIGHT THICKNESS STEEL
3/4" 3-3/4" x 3-3/4" 7/8" 10 Ga. 8041-3 3/4" 3-3/4" x 3-3/4" 7/8" 10 Ga. 8041-3NH
1" 3-3/4" x 3-3/4" 7/8" 10 Ga. 8041 1" 3-3/4" x 3-3/4" 7/8" 10 Ga. 8041-NH
1-1/4" 3-3/4" x 3-3/4" 7/8" 10 Ga. 8045 1-1/2" 3-3/4" x 3-3/4" 7/8" 10 Ga. 8047-NH
1-1/2" 3-3/4" x 3-3/4" 7/8" 10 Ga. 8047 2" 5" x 5" 1" 7 Ga. 8051-NH
2" 5" x 5" 1" 7 Ga. 8051 2-1/2" 5" x 5" 1" 7 Ga. 8049-NH
2-1/2" 5" x 5" 1" 7 Ga. 8049 3" 5" x 5" 5/8" 7 Ga. 8096-NH

SIMSHOE-A PLASTIC SPLIT-COVER STYLE SHOE!

While traditional cover shoes must be on the post
before the baseplate is welded to it, Simshoe™ allows
you to put your shoes on last.
SS1-3 for 1" 3⁹/₁₆" sq. base 2" H
SS114-3 for 1¼" 3⁹/₁₆" sq. base 2" H
CS251 CS250 SS112-3 for 1½" 3⁹/₁₆" sq. base 2" H
SS112-4 for 1½" 4¾" sq. base 1⅞" H
3-3/8" sq. 3-1/8" sq. SS2-4 for 2" 4¾" sq. base 1⅞" H
fits over 1" sq. 1/4" thick
fits over 1" sq.
