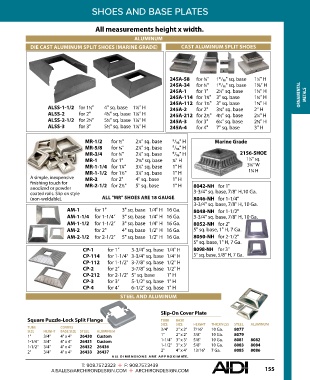

Page 157 - CATALOG

SHOES AND BASE PLATES

All measurements height x width.

ALUMINUM
DIE CAST ALUMINUM SPLIT SHOES (MARINE GRADE) CAST ALUMINUM SPLIT SHOES

245A-58 for ⅝" 1¹¹/₁₆" sq. base 1¼" H
245A-34 for ¾" 1¹¹/₁₆" sq. base 1⅜" H
245A-1 for 1" 2½" sq. base 1⅝" H
245A-114 for 1¼" 3" sq. base 1¾" H ORNAMENTAL METALS
245A-112 for 1½" 3" sq. base 1⅝" H
ALSS-1-1/2 for 1½" 4" sq. base 1⅛" H 245A-2 for 2" 3⅝" sq. base 2" H
ALSS-2 for 2" 4¼" sq. base 1⅛" H 245A-212 for 2½" 4½" sq. base 2¼" H
ALSS-2-1/2 for 2½" 5¼" sq. base 1⅛" H 245A-3 for 3" 6¼" sq. base 2⅝" H
ALSS-3 for 3" 5½" sq. base 1⅛" H 245A-4 for 4" 7" sq. base 3" H

MR-1/2 for ½" 2¼" sq. base ⁹/₁₆" H Marine Grade
MR-5/8 for ⅝" 2¼" sq. base ⁹/₁₆" H
MR-3/4 for ¾" 2¼" sq. base ⁹/₁₆" H 2156-SHOE
MR-1 for 1" 2⅝" sq. base ¼" H 1½" sq.
MR-1-1/4 for 1¼" 3⅛" sq. base 1" H 3⅝" W
MR-1-1/2 for 1½" 3¼" sq. base 1" H 1¾ H
A simple, inexpensive MR-2 for 2" 4" sq. base 1" H
finishing touch for
anodized or powder MR-2-1/2 for 2½" 5" sq. base 1" H 8042-NH for 1"
coated rails. Slip on style 3-3/4" sq. base, 7/8" H,10 Ga.
(non-weldable). ALL "MR" SHOES ARE 18 GAUGE 8046-NH for 1-1/4"
3-3/4" sq. base, 7/8" H, 10 Ga.
AM-1 for 1" 3" sq. base 1/4" H 16 Ga. 8048-NH for 1-1/2"
AM-1-1/4 for 1-1/4" 3" sq. base 1/4" H 16 Ga. 3-3/4" sq. base, 7/8" H, 10 Ga.
AM-1-1/2 for 1-1/2" 3" sq. base 1/4" H 16 Ga. 8052-NH for 2"
AM-2 for 2" 4" sq. base 1/2" H 16 Ga. 5" sq. base, 1" H, 7 Ga.
AM-2-1/2 for 2-1/2" 5" sq. base 1/2" H 16 Ga. 8050-NH for 2-1/2"
5" sq. base, 1" H, 7 Ga.
CP-1 for 1" 3-3/4" sq. base 1/4" H 8098-NH for 3"
CP-114 for 1-1/4" 3-3/4" sq. base 1/4" H 5" sq. base, 5/8" H, 7 Ga.
CP-112 for 1-1/2" 3-7/8" sq. base 1/2" H
CP-2 for 2" 3-7/8" sq. base 1/2" H
CP-212 for 2-1/2" 5" sq. base 1" H
CP-3 for 3" 5-1/2" sq. base 1" H
CP-4 for 4" 6-1/2" sq. base 1" H

STEEL AND ALUMINUM

Slip-On Cover Plate
Square Puzzle-Lock Split Flange TUBE BASE
SIZE SIZE HEIGHT THICKNESS STEEL ALUMINUM
TUBE COVERS 3/4" 2" x 2" 7/16" 10 Ga. 8077
SIZE HEIGHT BASE SIZE STEEL ALUMINUM
1" 3/4" 4" x 4" 26430 Custom 1" 2" x 2" 3/8" 10 Ga. 8079
1-1/4" 3/4" 4" x 4" 26431 Custom 1-1/4" 3" x 3" 5/8" 10 Ga. 8081 8082
1-1/2" 3/4" 4" x 4" 26432 26436 1-1/2" 3" x 3" 5/8" 10 Ga. 8083 8084
2" 3/4" 4" x 4" 26433 26437 2" 4" x 4" 13/16" 7 Ga. 8085 8086
A LL DIMENSIONS ARE APPR O XIM ATE .
T: 908.757.2323 ✛ F: 908.757.3439
AISALES@ARCHIRONDESIGN.COM ✛ ARCHIRONDESIGN.COM 155
