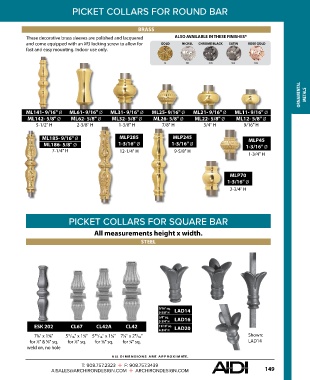

Page 151 - CATALOG

PICKET COLLARS FOR ROUND BAR

BRASS
These decorative brass sleeves are polished and lacquered ALSO AVAILABLE IN THESE FINISHES*
and come equipped with an M3 locking screw to allow for GOLD NICKEL CHROME BLACK SATIN ROSE GOLD
fast and easy mounting. Indoor use only.

G NI CN SA RG

ORNAMENTAL METALS

ML141- 9/16" Ø ML61- 9/16" Ø ML31- 9/16" Ø ML25- 9/16" Ø ML21- 9/16" Ø ML11- 9/16" Ø
ML142- 5/8" Ø ML62- 5/8" Ø ML32- 5/8" Ø ML26- 5/8" Ø ML22- 5/8" Ø ML12- 5/8" Ø
5-1/2" H 2-3/8" H 1-3/8" H 7/8" H 3/4" H 9/16" H

ML185- 9/16" Ø MLP285 MLP245 MLP45
ML186- 5/8" Ø 1-3/16" Ø 1-3/16" Ø 1-3/16" Ø
7-1/4" H 12-1/4" H 9-5/8" H
1-3/4" H

MLP70
1-3/16" Ø
2-3/4" H

PICKET COLLARS FOR SQUARE BAR

All measurements height x width.
STEEL

9/16" sq. LAD14
3-3/8" H
5/8" sq. LAD16
3-3/4" H
ESK 202 CL67 CL42A CL42 13/16" sq. LAD20
4-3/4" H
7⅞" x 1⅜" 5⁵/₁₆" x 1¾" 5¹⁵/₁₆" x 1¾" 7½" x 2⁹/₁₆" Shown:
for ½" & ⅝" sq. for ½" sq. for ⅝" sq. for ¾" sq. LAD14
weld on, no hole
A LL DIMENSIONS ARE APPR O XIM ATE .
