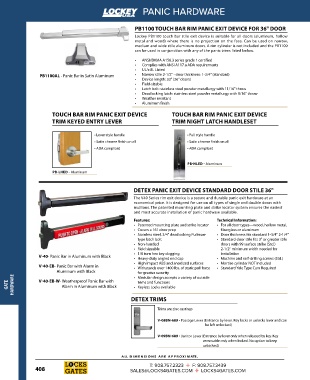

Page 410 - CATALOG

PANIC HARDWARE

PB1100 TOUCH BAR RIM PANIC EXIT DEVICE FOR 36" DOOR

Lockey PB1100 touch bar stile exit device is suitable for all doors (aluminum, hollow
metal and wood) where there is no projection on the face. Can be used on narrow,
medium and wide stile aluminum doors. A rim cylinder is not included and the PB1100
can be used in conjunction with any of the panic trims listed below.

• ANSI/BHMA A156.3 series grade 1 certified
• Complies with ANSI A117.a ADA requirements
• UL/cUL Listed
PB1100AL - Panic Bar in Satin Aluminum • Narrow stile 2-1/2" - door thickness: 1-3/4" (standard)
• Device length: 33" (36" doors)
• Field-sizable
• Latch bolt: stainless steel powder metallurgy with 11/16" throw
• Deadlocking latch: stainless steel powder metallurgy with 9/16" throw
• Weather resistant
• Aluminum finish
TOUCH BAR RIM PANIC EXIT DEVICE TOUCH BAR RIM PANIC EXIT DEVICE
TRIM KEYED ENTRY LEVER TRIM NIGHT LATCH HANDLESET

• Lever style handle • Pull style handle
• Satin chrome finish on all • Satin chrome finish on all
• ADA compliant • ADA compliant

PB-NLED - Aluminum
PB-LHED - Aluminum

DETEX PANIC EXIT DEVICE STANDARD DOOR STILE 36"
The V40 Series rim exit device is a secure and durable panic exit hardware at an
economical price. It is designed for use on all types of single and double doors with
mullions. The patented mounting plate and strike locator system ensures the easiest
and most accurate installation of panic hardware available.
Features: Technical Information:
• Patented mounting plate and strike locator • For all door types—wood, hollow metal,
• Covers a 161 door prep fiberglass or aluminum
• Stainless steel, 3/4" deadlocking Pullman- • Door thickness fits standard 1-3/4" 2-1/4"
type latch bolt • Standard door stile fits 3" or greater stile
• Non-handed doors with 99 surface strike (Std.)
• Field sizeable 2-1/2" minimum width needed for
• 1/8 turn hex key dogging installation
V-40- Panic Bar in Aluminum with Black • Heavy-duty angled end cap • Machine and self-drilling screws (Std.)
• High impact ABS and anodized surfaces • Mortise cylinder NOT included
V-40-EB- Panic Bar with Alarm in • Withstands over 1400 lbs. of static pull force • Standard Yale Type Cam Required
Aluminum with Black • Modular design accepts a variety of outside
for greater security
HARDWARE Alarm in Aluminum with Black • Keyless Locks available
GATE V-40-EB-W- Weatherproof Panic Bar with trims and functions

DETEX TRIMS

Trims are zinc castings

V-08BN-689 - Passage Lever ( Entrance by lever. Key locks or unlocks lever and can
be left unlocked.)

V-09BN-689 - Janitor Lever ( Entrance by lever only when released by key. Key
removable only when locked. No option to keep
unlocked)

A LL DIMENSIONS ARE APPR O XIM ATE .
