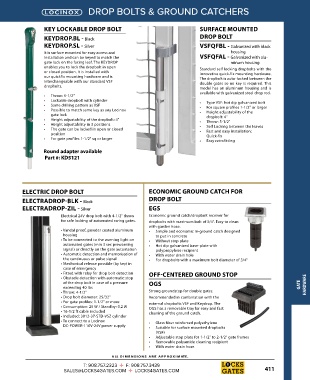

Page 413 - CATALOG

DROP BOLTS & GROUND CATCHERS

KEY LOCKABLE DROP BOLT SURFACE MOUNTED
DROP BOLT
KEYDROP.BL - Black
KEYDROP.SL - Silver VSFQFBL - Galvanized with black
It is surface mounted for easy access and housing
installation and can be keyed to match the VSFQFAL - Galvanized with alu-
gate lock on the facing leaf. The KEYDROP minum housing
enables you to lock the dropbolt in open Standard self locking dropbolts with the
or closed position. It is installed with innovative quick-fix mounting hardware.
our quick fix mounting hardware and is The dropbolt is auto-locked between the
interchangeable with our standard VSF double gates so no key is required. This
dropbolts. model has an aluminum housing and is
available with galvanized steel drop rod.
• Throw: 5-1/2"
• Lockable dropbolt with cylinder • Type VSF: hot dip galvanized bolt
• Same drilling pattern as VSF • For square profiles 1-1/2" or larger
• Possible to match same key as any Locinox • Height adjustability of the
gate lock
• Height adjustability of the dropbolt: 4" • dropbolt: 4"
Throw: 5-1/2"
• Height adjustability in 3 positions • Self Locking between the leaves
• The gate can be locked in open or closed • Fast and easy installation:
position Quick-fix
• For gate profiles 1-1/2" sq or larger
• Easy retrofitting
Round adapter available
Part #: KD5121

ELECTRIC DROP BOLT ECONOMIC GROUND CATCH FOR
DROP BOLT
ELECTRADROP-BLK - Black
ELECTRADROP-ZIL - Silver EGS
Electrical 24V drop bolt with 4-1/2" throw Economic ground catch/dropbolt receiver for
for safe locking of automated swing gates. dropbolts with maximum bolt of 3/4". Easy to clean
with garden hose.
• Vandal proof, powder coated aluminum • Simple and economic In-ground catch designed
housing to put in concrete
• To be connected to the warning light on • Without stop plate
automated gates (min 3 sec prewarning • Hot dip galvanized base-plate with
signal) or directly on the gate automation polypropylene recipient
• Automatic detection and memorisation of • With water drain hole
the continuous or pulse signal • For dropbolts with a maximum bolt diameter of 3/4"
• Mechanical release possible (by key) in
case of emergency
• Fitted with relay for drop bolt detection OFF-CENTERED GROUND STOP
• Obstacle detection with automatic stop
of the drop bolt in case of a pressure OGS GATE
exceeding 40 lbs HARDWARE
• Throw: 4-1/2" Strong groundstop for double gates.
• Drop bolt diameter: 25/32" Recommended in combination with the
• For gate profiles: 1-1/2" or more external dropbolts VSF and Keydrop. The
• Consumption: 25 W / Standby: 0,2 W OGS has a removable tray for easy and fast
• 16-1/2 ft cable included cleaning of the ground catch.
• Included: 3012-37-STD-VSZ cylinder
• To connect to a Locinox • Glass fiber reinforced polyethylene
DC-POWER-110V-24V power supply • Suitable for surface mounted dropbolts
(VSF)
• Adjustable stop plate for 1-1/2" to 2-1/2" gate frames
• Removable polyamide cleaning recipient
• With water drain hose
A LL DIMENSIONS ARE APPR O XIM ATE .
