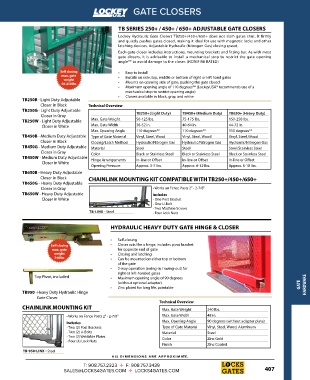

Page 409 - CATALOG

GATE CLOSERS

TB SERIES 250+ / 450+ / 650+ ADJUSTABLE GATE CLOSERS

Lockey Hydraulic Gate Closers TB250+/450+/650+ does not slam gates shut. It firmly
and quietly pushes gates closed, making it ideal for use with magnetic locks and other
latching devices. Adjustable Hydraulic (Nitrogen Gas) closing speed.
Each gate closer includes instructions, mounting brackets and fitting bar. As with most
gate closers, it is advisable to install a mechanical stop to restrict the gate opening
angle** to avoid damage to the closer. (NON FIRE RATED)

Self closing • Easy to install
max. gate • Installs on side, top, middle or bottom of right or left hand gates
weight
50-250lbs • Mounts on opening side of gate, pushing the gate closed
• Maximum opening angle of 110 degrees** (LockeyUSA® recommends use of a
mechanical stop to restrict opening angle)
• Closers available in black, gray, and white
TB250B - Light Duty Adjustable
Closer in Black Technical Overview
TB250G - Light Duty Adjustable
Closer in Gray TB250+ (Light Duty) TB450+ (Medium Duty) TB650+ (Heavy Duty)
TB250W - Light Duty Adjustable Max. Gate Weight 50-125 lbs. 75-175 lbs. 150-250 lbs.
Closer in White Max. Gate Width 36-52 in. 40-64 in. 44-72 in.
Max. Opening Angle 110 degrees** 110 degrees** 110 degrees**
TB450B - Medium Duty Adjustable Type of Gate Material Vinyl, Steel, Wood Vinyl, Steel, Wood Vinyl, Steel, Wood
Closer in Black Closing/Latch Method Hydraulic/Nitrogen Gas Hydraulic/Nitrogen Gas Hydraulic/Nitrogen Gas
TB450G - Medium Duty Adjustable Material Steel Steel Steel/Stainless Steel
Closer in Gray Color Black or Stainless Steel Black or Stainless Steel Black or Stainless Steel
TB450W - Medium Duty Adjustable Hinge Arrangements In-line or Offset In-line or Offset In-line or Offset
Closer in White
Opening Pressure Approx. 3-7 lbs. Approx. 6-12 lbs. Approx. 8-18 lbs.
TB650B - Heavy Duty Adjustable
Closer in Black CHAINLINK MOUNTING KIT COMPATIBLE WITH TB250+/450+/650+
TB650G - Heavy Duty Adjustable
Closer in Gray • Works on Fence Posts 2" - 2-7/8"
TB650W - Heavy Duty Adjustable Includes
Closer in White - One Post Bracket
- One U-Bolt
- Two Machine Screws
TB-LINX - Steel - Four Lock Nuts

HYDRAULIC HEAVY DUTY GATE HINGE & CLOSER

• Self-closing
Self closing • Closer acts like a hinge, includes pivot bracket
max. gate for opposite end of gate
weight • Closing and latching
240lbs • Can be mounted on either top or bottom
of the gate
• 2-way operation (swing-in / swing-out) for
right or left-handed gates
Top Pivot, included • Maximum opening angle of 90 degrees
(without optional adapter) GATE
• Zinc plated for long life, paintable HARDWARE
TB950 - Heavy Duty Hydraulic Hinge
Gate Closer
Technical Overview
CHAINLINK MOUNTING KIT Max. Gate Weight 240 lbs.

• Works on Fence Posts 2" - 2-7/8" Max. Gate Width 48 in.
Includes Max. Opening Angle 90 degrees (without adapter plate)
- Two (2) Post Brackets Type of Gate Material Vinyl, Steel, Wood, Aluminum
- Two (2) U-Bolts Material Steel
- Two (2) Weldable Plates Color Zinc Gold
- Four (4) Lock Nuts
Finish Zinc Coated
TB-950-LINX - Steel
A LL DIMENSIONS ARE APPR O XIM ATE .
