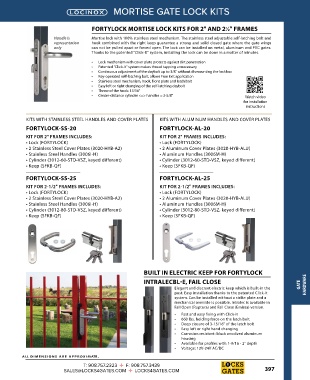

Page 399 - CATALOG

MORTISE GATE LOCK KITS

FORTYLOCK MORTISE LOCK KITS FOR 2" AND 2½" FRAMES

Handle is Mortise lock with 100% stainless steel mechanism. The stainless steel adjustable self-latching bolt and
representation hook combined with the right keep guarantee a strong and solid closed gate where the gate wings
only can not be pulled apart or forced open. The lock can be installed on metal, aluminum and PVC gates.
Thanks to the patented "Click-It" system, installing the lock can be done in a matter of minutes.
• Lock mechanism with cover plate protects against dirt penetration
• Patented "Click-It" system makes thread tapping unnecessary
• Continuous adjustment of the daybolt up to 3/8" without dismounting the lockbox
• Key-operated self-latching bolt, allows Free Exit application
• Stainless steel mechanism, hook, front plate and latch bolt
• Easy left or right changing of the self-latching daybolt
• Throw of the hook: 13/16"
• Center-distance cylinder <=> handles = 3-5/8" Watch video
for installation
instructions

KITS WITH STAINLESS STEEL HANDLES AND COVER PLATES KITS WITH ALUMINUM HANDLES AND COVER PLATES
FORTYLOCK-SS-20 FORTYLOCK-AL-20
KIT FOR 2" FRAMES INCLUDES: KIT FOR 2" FRAMES INCLUDES:
• Lock (FORTYLOCK) • Lock (FORTYLOCK)
• 2 Stainless Steel Cover Plates (3020-HYB-A2) • 2 Aluminum Cover Plates (3020-HYB-ALU)
• Stainless Steel Handles (3006I-H) • Aluminum Handles (3006M-H)
• Cylinder (3012-60-STD-VSZ, keyed different) • Cylinder (3012-60-STD-VSZ, keyed different)
• Keep (SFKB-QF) • Keep (SFKB-QF)

FORTYLOCK-SS-25 FORTYLOCK-AL-25
KIT FOR 2-1/2" FRAMES INCLUDES: KIT FOR 2-1/2" FRAMES INCLUDES:
• Lock (FORTYLOCK) • Lock (FORTYLOCK)
• 2 Stainless Steel Cover Plates (3020-HYB-A2) • 2 Aluminum Cover Plates (3020-HYB-ALU)
• Stainless Steel Handles (3006I-H) • Aluminum Handles (3006M-H)
• Cylinder (3012-80-STD-VSZ, keyed different) • Cylinder (3012-80-STD-VSZ, keyed different)
• Keep (SFKB-QF) • Keep (SFKB-QF)

BUILT IN ELECTRIC KEEP FOR FORTYLOCK

INTRALECBL-E, FAIL CLOSE GATE
Elegant and discreet electric keep which is built-in the HARDWARE
post. Easy installation thanks to the patented Click-It
system. Can be installed without a strike plate and a
mechanical override is possible. Intralec is available in
Fail Open (Ruptura) and Fail Close (Emissa) version.
• Fast and easy fixing with Click-it
• 660 lbs. holding force on the latch bolt
• Deep closure of 3-15/16" of the latch bolt
• Easy left or right hand changing
• Corrosion resistant: black anodized aluminum
housing
• Available for profiles with 1-9/16 - 2" depth
• Voltage: 12V-24V AC/DC
A LL DIMENSIONS ARE APPR O XIM ATE .
