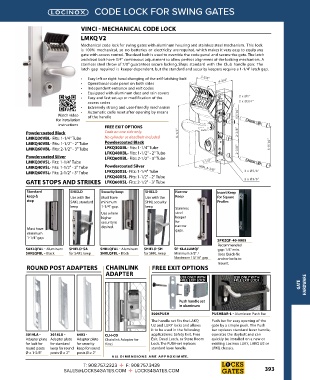

Page 395 - CATALOG

CODE LOCK FOR SWING GATES

VINCI - MECHANICAL CODE LOCK

LMKQ V2
Mechanical code lock for swing gates with aluminum housing and stainless steel mechanism. This lock
is 100% mechanical, so no batteries or electricity are required, which makes it very easy to equip any
gate with access control. The dead bolt is used to override the code panel and secure the gate. The latch
and dead bolt have 3/4" continuous adjustment to allow perfect alignment of the locking mechanism. A
stainless steel throw of 7/8" guarantees secure locking. Ships standard with the Club handle pair. The
latch gap required is keeper dependent, but the standard and security keepers require a 1-1/4" latch gap.

• Easy left or right hand changing of the self-latching bolt 3-5/8" 4-3/4"
• Operational code panel on both sides
• Independent entrance and exit codes
• Equipped with aluminum dust and rain covers
• Easy and fast set-up or modification of the 2 x Ø1"
access codes 2 x Ø3/4"
• Extremely strong and user-friendly mechanism
• Automatic code reset after opening by means
Watch video of the handle 13/16"
for installation
instructions FREE EXIT OPTIONS
Powdercoated Black Code on one side only. 8-1/2" 2-3/8"
LMKQ30VBL- Fits: 1-1/4" Tube No cylinder or deadbolt included
LMKQ40VBL- Fits: 1-1/2" - 2" Tube Powdercoated Black 5-9/16"
LMKQ60VBL- Fits: 2-1/2" - 3" Tube LFKQ30XBL- Fits: 1-1/4" Tube 2-3/8"
LFKQ40XBL- Fits: 1-1/2" - 2" Tube
Powdercoated Silver LFKQ60XBL- Fits: 2-1/2" - 3" Tube
LMKQ30VSL- Fits: 1-1/4" Tube 1-1/4"
LMKQ40VSL- Fits: 1-1/2" - 2" Tube Powdercoated Silver MIN. 4-3/8"

LMKQ60VSL- Fits: 2-1/2" - 3" Tube LFKQ30XSL- Fits: 1-1/4" Tube 2 x Ø5/8"
LFKQ40XSL- Fits: 1-1/2" - 2" Tube
GATE STOPS AND STRIKES LFKQ60XSL- Fits: 2-1/2" - 3" Tube 2 x Ø3/8"

Standard SHIELD Security keep SHIELD Narrow Insert Keep
keep & Use with the Must have Use with the Keep for Square
stop SAKL standard minimum SHKL security Profles
keep 1-1/4" gap. keep
Stainless
Use where steel
higher keeper
security is for
Must have desired. narrow
gaps.
minimum
1-1/4" gap.
SPKZQF-40-9005
Recommended
SAKLQFAL - Aluminum SHIELD-SA SHKLQFAL - Aluminum SHIELD-SH SF-KLALUMQF gap: 1/4" min.
SAKLQFBL - Black for SAKL keep SHKLQFBL - Black for SHKL keep Minimum 3/8" / Uses Quick-fix
Maximum 13/16" gap anchor bolts to
mount.
ROUND POST ADAPTERS CHAINLINK FREE EXIT OPTIONS
ADAPTER
USE ONLY WITH USE ONLY WITH
FREE EXIT LOCK FREE EXIT LOCK
GATE HARDWARE

Push handle set
in aluminum
3006PUSH PUSHBAR-L - Aluminum Push Bar
The handle set fits the LAKQ Push bar for easy opening of the
U2 and LUKY locks and allows gate by a simple push. The Push
it to be used in the following bar replaces standard lever handle,
3019LA - 3018LA - 6403 - CLH-CO applications: Safety Exit, Free operates the daybolt and can
Adapter plate Adapter plate Adapter plate Chainlink Adapter for Exit, Dead Latch, or Store Room quickly be installed on a new or
for lock for for standard for security Vinci Lock. The PUSH-set replaces existing Locinox LUKY, LAKQ U2 or
round posts keep for round keep for round standard lever handle. LFKQ chassis.
Ø ≥ 1-3/8" posts Ø ≥ 2" posts Ø ≥ 2"
A LL DIMENSIONS ARE APPR O XIM ATE .
