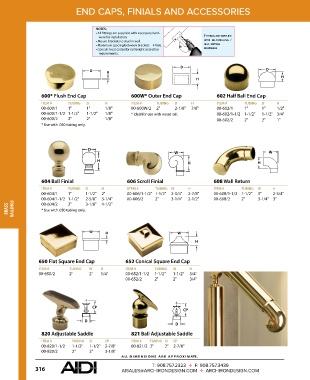

Page 318 - CATALOG

END CAPS, FINIALS AND ACCESSORIES

NOTES:
• All fittings are supplied with necessary hard-
ware for installation FITTINGS ARE SUPPLIED
• Mount brackets to stud in wall. WITH SELF-DRILLING /
• Maximum spacing between brackets – 4 feet. SELF-TAPPING
• Consult local codes for rail height and other HARDWARE
requirements.

D
D H D
H
H

600* Flush End Cap 600W* Outer End Cap 602 Half Ball End Cap
ITEM # TUBING D H ITEM # TUBING D H ITEM # TUBING D H
00-600/1 1" 1" 1/8" 00-600W/2 2" 2-1/8" 7/8" 00-602/1 1" 1" 1/2"
00-600/1-1/2 1-1/2" 1-1/2" 1/8" * Ideal for use with wood rail. 00-602/1-1/2 1-1/2" 1-1/2" 3/4"
00-600/2 2" 2" 1/8" 00-602/2 2" 2" 1"
* Use with .050 tubing only.

D
W W
H
H H

604 Ball Finial 606 Scroll Finial 608 Wall Return
ITEM # TUBING D H IITEM # TUBING W H ITEM # TUBING W H
00-604/1 1" 1-1/2" 2" 00-606/1-1/2" 1-1/2" 2-3/4" 2-7/8" 00-608/1-1/2 1-1/2" 3" 2-3/4"
00-604/1-1/2 1-1/2" 2-5/8" 3-1/4" 00-606/2 2" 3-1/4" 2-1/2" 00-608/2 2" 3-1/4" 3"
BRASS RAILINGS 00-604/2 2" 3-1/8" 4-1/2"
* Use with .050 tubing only.

W H W

H

650 Flat Square End Cap 652 Conical Square End Cap
ITEM # TUBING W H ITEM # TUBING W H
00-650/2 2" 2" 1/4" 00-652/1-1/2 1-1/2" 1-1/2" 3/4"
00-652/2 2" 2" 3/4"

CP
CP

D
D
820 Adjustable Saddle 821 Ball Adjustable Saddle
ITEM # TUBING D CP ITEM # TUBING D CP
00-820/1-1/2 1-1/2" 1-1/2" 2-7/8" 00-821/2 2" 2" 2-7/8"
00-820/2 2" 2" 3-1/8"
A LL DIMENSIONS ARE APPR O XIM ATE .
