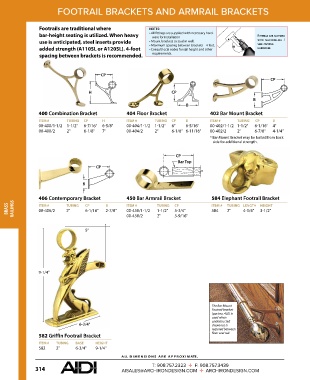

FOOTRAIL BRACKETS AND ARMRAIL BRACKETS

Footrails are traditional where NOTES:
bar-height seating is utilized. When heavy • All fittings are supplied with necessary hard- FITTINGS ARE SUPPLIED
ware for installation
use is anticipated, steel inserts provide • Mount brackets to stud in wall. WITH SELF-DRILLING /
SELF-TAPPING
added strength (A110SL or A120SL). 4-foot • Maximum spacing between brackets – 4 feet. HARDWARE
• Consult local codes for rail height and other
spacing between brackets is recommended. requirements.

CP
CP

H CP
B
B
400 Combination Bracket 404 Floor Bracket 402 Bar Mount Bracket
ITEM # TUBING CP H ITEM # TUBING CP B ITEM # TUBING CP B
00-400/1-1/2 1-1/2" 6-7/16" 6-5/8" 00-404/1-1/2 1-1/2" 6" 6-5/16" 00-402/1-1/2 1-1/2" 6-1/16" 4"
00-400/2 2" 6-1/8" 7" 00-404/2 2" 6-1/8" 6-11/16" 00-402/2 2" 6-7/8" 4-1/4"
* Bar Mount Bracket may be bolted from back
side for additional strength.

CP
Bar Top
CP

B

406 Contemporary Bracket 450 Bar Armrail Bracket 584 Elephant Footrail Bracket
BRASS RAILINGS ITEM # TUBING CP B 2-7/8" ITEM # TUBING CP ITEM # TUBING LENGTH HEIGHT
1-1/2"
2"
5-3/4"
584
00-406/2
6-1/16"
00-450/1-1/2
4-3/4" 3-1/2"
2"
5-9/16"
2"
00-450/2
5"

9-1/4"

The Bar Mount
Footrail bracket
(part no. 402) is
used when
unobstructed
6-3/4" clearance is
required between
582 Griffin Footrail Bracket floor and rail.
ITEM # TUBING BASE HEIGHT
582 2" 6-3/4" 9-1/4"
A LL DIMENSIONS ARE APPR O XIM ATE .
