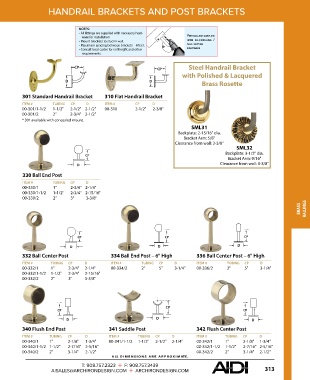

HANDRAIL BRACKETS AND POST BRACKETS

NOTES:
• All fittings are supplied with necessary hard-
ware for installation FITTINGS ARE SUPPLIED
• Mount brackets to stud in wall. WITH SELF-DRILLING /
• Maximum spacing between brackets – 4 feet. SELF-TAPPING
• Consult local codes for rail height and other HARDWARE
requirements.

CP CP Steel Handrail Bracket
with Polished & Lacquered
D D Brass Rosette

301 Standard Handrail Bracket 310 Flat Handrail Bracket
ITEM # TUBING CP D ITEM # CP D
00-301/1-1/2 1-1/2" 2-1/2" 2-1/2" 00-310 2-1/2" 2-3/8"
00-301/2 2" 2-3/4" 2-1/2"
* 301 available with concealed mount.
SML31
Backplate: 2-15/16" dia.
Bracket Arm: 5/8"
Clearance from wall: 3-3/8"
SML32
Backplate: 3-1/2" dia.
CP
Bracket Arm: 9/16"
D Clearance from wall: 3-3/8"
330 Ball End Post
ITEM # TUBING CP D
00-330/1 1" 2-3/4" 2-1/4"
00-330/1-1/2 1-1/2" 2-3/4" 2-15/16"
00-330/2 2" 3" 3-3/8"
BRASS RAILINGS

CP CP CP

D D D
332 Ball Center Post 334 Ball End Post – 6" High 336 Ball Center Post – 6" High
ITEM # TUBING CP D ITEM # TUBING CP D ITEM # TUBING CP D
00-332/1 1" 2-3/4" 2-1/4" 00-334/2 2" 5" 3-1/4" 00-336/2 2" 5" 3-1/4"
00-332/1-1/2 1-1/2" 2-3/4" 2-15/16"
00-332/2 2" 3" 3-3/8"

CP
CP CP

D D D
340 Flush End Post 341 Saddle Post 342 Flush Center Post
ITEM # TUBING CP D ITEM # TUBING CP D ITEM # TUBING CP D
00-340/1 1" 2-1/8" 1-3/4" 00-341/1-1/2 1-1/2" 2-1/2" 2-1/4" 00-342/1 1" 2-1/8" 1-3/4"
00-340/1-1/2 1-1/2" 2-7/16" 2-5/16" 00-342/1-1/2 1-1/2" 2-7/16" 2-5/16"
00-340/2 2" 3-1/4" 2-1/2" 00-342/2 2" 3-1/4" 2-1/2"
A LL DIMENSIONS ARE APPR O XIM ATE .
