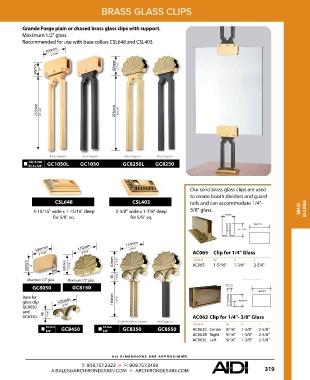

Page 321 - CATALOG

BRASS GLASS CLIPS

Grande Forge plain or chased brass glass clips with support.
Maximum 1/2" glass.
Recommended for use with base collars CSL648 and CSL403.
100mm
3 15 /16"

50mm 2" 62mm 2 7 /16"

255mm 10 1 /16" 255mm 10 1 /16"

Brass Support Steel Support Brass Support Steel Support
14x16 mm GC1050L GC1050 GC8250L GC8250
9/16 x 5/8”

Our solid brass glass clips are used
to create booth dividers and guard
CSL648 CSL403 rails and can accommodate 1/4"-

3-15/16" wide x 1-15/16" deep 2-3/8" wide x 1-7/8" deep 3/8" glass. BRASS RAILINGS
for 5/8" sq. for 5/8" sq.

100mm 110mm 110mm
4 5 /16"
3 15 /16" 4 5 /16" AC065 Clip for 1/4" Glass
ITEM #
50mm 2" 25mm 62mm 2 7 /16" 62mm 2 7 /16" AC065 W H L 2-5/8"
1-3/8"
1-5/16"
1"
Maximum 1/2" glass Maximum 1/2" glass 40 1 9 /16"
GC8050 GC8150

Base for 110mm
glass clip 105mm 4 5 /16"
GC8050 4 1 /8"
and
GC8150. 40 1 9 /16" AC062 Clip for 1/4"- 3/8" Glass
Guilloched Brass Support Steel Support
16 mm GC8450 16 mm GC8350 GC8550 ITEM # W H L 2-5/8"
1-3/8"
AC062C Center 9/16"
5/8” 5/8”
AC062R Right 9/16" 1-3/8" 2-5/8"
AC062L Left 9/16" 1-3/8" 2-5/8"
A LL DIMENSIONS ARE APPR O XIM ATE .
