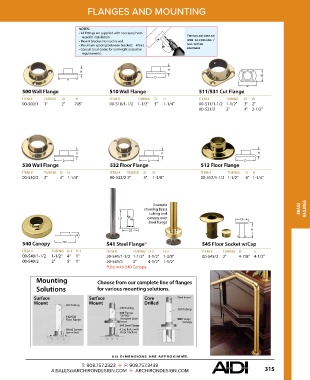

FLANGES AND MOUNTING

NOTES:
• All fittings are supplied with necessary hard-
ware for installation FITTINGS ARE SUPPLIED
• Mount brackets to stud in wall. WITH SELF-DRILLING /
• Maximum spacing between brackets – 4 feet. SELF-TAPPING
• Consult local codes for rail height and other HARDWARE
requirements.

500 Wall Flange 510 Wall Flange 511/531 Cut Flange
ITEM # TUBING D H ITEM # TUBING D H ITEM # TUBING D W
00-500/1 1" 2" 7/8" 00-510/1-1/2 1-1/2" 3" 1-1/4" 00-511/1-1/2 1-1/2" 3" 2"
00-531/2 2" 4" 2-1/2"

530 Wall Flange 532 Floor Flange 512 Floor Flange
ITEM # TUBING D H ITEM # TUBING D H ITEM # TUBING D H
00-530/2 2" 4" 1-1/4" 00-532/2 2" 5" 1-3/8" 00-512/1-1/2 1-1/2" 4" 1-1/4"

Example
showing brass BRASS RAILINGS
tubing and
canopy over
steel flange

540 Canopy 541 Steel Flange* 545 Floor Socket w/Cap
ITEM # TUBING D-1 H-1 ITEM # TUBING D-2 H-2 ITEM # TUBING D H
00-540/1-1/2 1-1/2" 4" 1" 20-541/1-1/2 1-1/2" 3-1/2" 1-3/8" 00-545/2 2" 4-7/8" 4-1/2"
00-540/2 2" 5" 1" 20-541/2 2" 4-1/2" 1-1/2"
*Use with 540 Canopy

Mounting Choose from our complete line of flanges
Solutions for various mounting solutions.

Surface Surface Core Steel Insert
Mount .050 Tubing Mount Drilled
.050 Tubing .050 Tubing
540 Flange
512/532 Canopy
Threaded Steel
Floor Flange 540 Flange
Insert Canopy
541 Steel Flange
Wood Screws 4 Lag Bolts with
(provided) Floor Anchors

A LL DIMENSIONS ARE APPR O XIM ATE .
