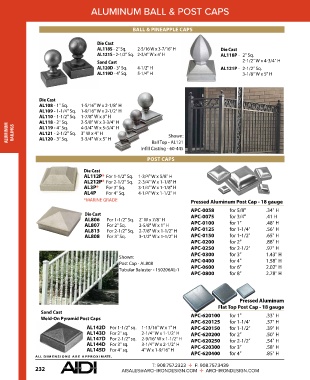

Page 234 - CATALOG

ALUMINUM BALL & POST CAPS

BALL & PINEAPPLE CAPS

Die Cast
AL118S - 2" Sq. 2-5/16 W x 3-7/16" H Die Cast
AL121S - 2-1/2" Sq. 2-3/4" W x 4" H AL118P - 2" Sq.
Sand Cast 2-1/2" W x 4-3/4" H
AL120D - 3" Sq. 4-1/2" H AL121P - 2-1/2" Sq.
AL119D - 4" Sq. 5-1/4" H 3-1/8" W x 5" H

Die Cast
AL108 - 1" Sq. 1-5/16" W x 2-1/8" H
AL109 - 1-1/4" Sq. 1-9/16" W x 2-1/2" H
AL110 - 1-1/2" Sq. 1-7/8" W x 3" H
2-5/8" W x 3-3/4" H
AL118 - 2" Sq.
ALUMINUM RAILINGS AL119 - 4" Sq. 4-3/4" W x 5-3/4" H Shown:
AL121 - 2-1/2" Sq. 3" W x 4" H
AL120 - 3" Sq.
3-3/4" W x 5” H
Ball Top - AL121
Infill Casting - 60-445
POST CAPS

Die Cast
AL112P* For 1-1/2" Sq. 1-3/4" W x 5/8" H
AL212P* For 2-1/2" Sq. 2-3/4" W x 1-1/8" H
AL3P* For 3" Sq. 3-1/4" W x 1-1/8" H
AL4P For 4" Sq. 4-1/4" W x 1-1/2" H
*MARINE GRADE Pressed Aluminum Post Cap - 18 gauge
APC-0058 for 5/8" .34" H
Die Cast APC-0075 for 3/4" .41 H
AL806 For 1-1/2" Sq. 2" W x 7/8" H
AL807 For 2" Sq. 2-5/8" W x 1" H APC-0100 for 1" .48" H
AL813 For 2-1/2" Sq. 2-7/8" W x 1-1/2" H APC-0125 for 1-1/4" .56" H
AL808 For 3" Sq. 3-1/2" W x 1-1/2" H APC-0150 for 1-1/2" .65" H
APC-0200 for 2" .88" H
APC-0250 for 2-1/2" .97" H
APC-0300 for 3" 1.43" H
Shown:
Post Cap - AL808 APC-0400 for 4" 1.58" H
Tubular Baluster - 150206AL-1 APC-0600 for 6" 2.02" H
APC-0800 for 8" 2.78" H

Pressed Aluminum
Flat Top Post Cap - 18 gauge
Sand Cast
Weld-On Pyramid Post Caps APC-620100 for 1" .33" H
APC-620125 for 1-1/4" .37" H
AL142D For 1-1/2" sq. 1-13/16" W x 1" H APC-620150 for 1-1/2" .39" H
AL143D For 2" sq. 2-1/4" W x 1-1/2" H APC-620200 for 2" .50" H
AL147D For 2-1/2" sq. 2-9/16" W x 1-1/2" H APC-620250 for 2-1/2" .54" H
AL144D For 3" sq. 3-1/4" W x 2-1/2" H
AL145D For 4" sq. 4" W x 1-9/16" H APC-620300 for 3" .58" H
A LL DIMENSIONS ARE APPR O XIM ATE . APC-620400 for 4" .85" H
T: 908.757.2323 ✛ F: 908.757.3439
232 AISALES@ARCHIRONDESIGN.COM ✛ ARCHIRONDESIGN.COM
