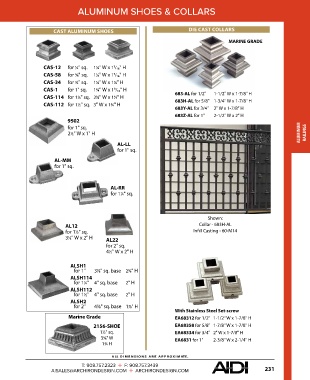

Page 233 - CATALOG

ALUMINUM SHOES & COLLARS

CAST ALUMINUM SHOES DIE CAST COLLARS

MARINE GRADE

CAS-12 for ½" sq. 1¼" W x 1¹/₁₆" H
CAS-58 for ⅝" sq. 1¼" W x 1¹/₁₆" H
CAS-34 for ¾" sq. 1¼" W x 1⅛" H
CAS-1 for 1" sq. 1¾" W x 1³/₁₆" H 683-AL for 1/2" 1-1/2" W x 1-7/8" H
CAS-114 for 1¼" sq. 2¾" W x 1½" H 683H-AL for 5/8" 1-3/4" W x 1-7/8" H
CAS-112 for 1½" sq. 3" W x 1¾" H
683Y-AL for 3/4" 2" W x 1-7/8" H
683Z-AL for 1" 2-1/2" W x 2" H
9502
for 1" sq.
2½" W x 1" H ALUMINUM RAILINGS
AL-LL
for 1" sq.
AL-MM
for 1" sq.

AL-RR
for 1¼" sq.

Shown:
AL12 Collar - 683H-AL
for 1½" sq. Infill Casting - 60-M14
3½" W x 2" H AL22
for 2" sq.
4½" W x 2" H

ALSH1
for 1" 3⅞" sq. base 2⅛" H
ALSH114
for 1¼" 4" sq. base 2" H
ALSH112
for 1½" 4" sq. base 2" H
ALSH2
for 2" 4⅝" sq. base 1⅞" H
With Stainless Steel Set-screw
Marine Grade EA68312 for 1/2" 1-1/2" W x 1-7/8" H
2156-SHOE EA68358 for 5/8" 1-7/8" W x 1-7/8" H
1½" sq. EA68334 for 3/4" 2" W x 1-7/8" H
3⅝" W EA6831 for 1" 2-3/8" W x 2-1/4" H
1¾ H

A LL DIMENSIONS ARE APPR O XIM ATE .
T: 908.757.2323 ✛ F: 908.757.3439
AISALES@ARCHIRONDESIGN.COM ✛ ARCHIRONDESIGN.COM 231
