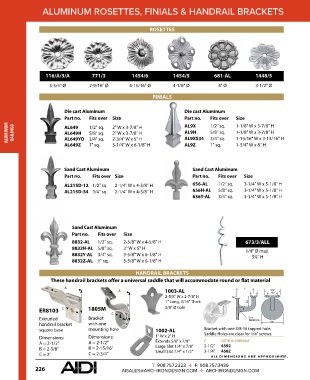

Page 228 - CATALOG

ALUMINUM ROSETTES, FINIALS & HANDRAIL BRACKETS

ROSETTES

116/A/3/A 771/3 1454/6 1454/5 681-AL 1448/5
3-3/4" Ø 2-9/16" Ø 4-15/16" Ø 4-1/8" Ø 4" Ø 3-1/2" Ø

FINIALS

Die cast Aluminum Die cast Aluminum
Part no. Fits over Size Part no. Fits over Size
ALUMINUM RAILINGS AL649 1/2" sq. 2" W x 3-7/8" H AL9X 1/2" sq. 1-1/8" W x 3-7/8" H
1-1/8" W x 3-7/8" H
AL9H
5/8" sq.
2" W x 3-7/8" H
AL649H
5/8" sq.
AL9XS34
3/4" sq.
1-15/16" W x 3-13/16" H
AL649YO 3/4" sq.
AL649Z 1" sq. 2-3/4" W x 5" H AL9Z 1" sq. 1-3/4" W x 8" H
3-1/4" W x 6-1/8" H
Sand Cast Aluminum Sand Cast Aluminum
Part no. Fits over Size Part no. Fits over Size
AL215D-12 1/2" sq. 2-1/4" W x 4-3/8" H 656-AL 1/2" sq. 3-1/4" W x 5-1/8" H
AL215D-34 3/4" sq. 2-1/4" W x 4-3/8" H 656H-AL 5/8" sq. 3-1/4" W x 5-1/8" H
656Y-AL 3/4" sq. 3-1/4" W x 5-1/8" H

Sand Cast Aluminum
Part no. Fits over Size
8832-AL 1/2" sq. 2-5/8" W x 4-5/8" H 673/3/ALL
8832H-AL 5/8" sq. 3" W x 5" H 1/4" Ø matl.
8832Y-AL 3/4" sq. 3-5/8" W x 6-1/8" H 5⅞" H
8832Z-AL 1" sq. 3-5/8" W x 6-1/8" H

HANDRAIL BRACKETS
These handrail brackets offer a universal saddle that will accommodate round or flat material

A c
A 1003-AL 1" 2 1 /4"
1 1 /2"
2-5/8" W x 2-7/8" H 5 /16"
B 1" Long, 3/16" Thick 1 1 /2"
B 3/8" Ø hole
ER8103 C 1805M
C
Extruded Bracket 3 /8-16
Tapped Hole
handrail bracket with one 3 1 /8"
square base mounting hole 1002-AL Bracket with one 3/8-16 tapped hole.
Saddle Holes are clear for 1/4" screws.
Dimensions: Dimensions: 1" W x 2" H
A = 2-1/2" A = 2-1/2" Extends 5/8" x 7/8" C SATIN ALUMINUM
4592
2-1/2"
B = 2-5/8" B = 2-15/16" Large Slot 1/4" x 7/8" 3-1/4" 4582
Small Slot 1/4" x 1/2"
C = 2" C = 2-3/4" A LL DIMENSIONS ARE APPR O XIM ATE .
T: 908.757.2323 ✛ F: 908.757.3439
226 AISALES@ARCHIRONDESIGN.COM ✛ ARCHIRONDESIGN.COM
