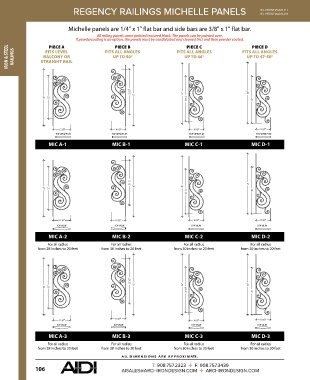

REGENCY RAILINGS MICHELLE PANELS U.S. PATENT #5,820,111
U.S. PATENT #6,059,269

Michelle panels are 1/4" x 1" flat bar and side bars are 3/8" x 1" flat bar.
All railing panels come painted textured black. The panels can be painted over.
If powdercoating is an option, the panels must be sandblasted and cleaned first and then powder coated. PIECE D
IRON & STEEL RAILINGS STRAIGHT RAIL FITS ALL ANGLES FITS ALL ANGLES FITS ALL ANGLES
PIECE A
PIECE C
PIECE B
FITS LEVEL
UP TO 47-50°
UP TO 46°
BALCONY OR
UP TO 50°

33 1/2" 45" 45"
42" 32" 45" 33 1/2" 35"

12 1/2" 10 1/2" 10 1/2" 10 1/2"
TOP VIEW FLAT TOP VIEW FLAT TOP VIEW FLAT TOP VIEW FLAT
MIC A-1 MIC B-1 MIC C-1 MIC D-1

33 1/2" 45"
42" 32" 45" 45"
33 1/2" 35"

12 1/2" 10 1/2" 10 1/2" 10 1/2"
TOP VIEW TOP VIEW TOP VIEW TOP VIEW
MIC A-2 MIC B-2 MIC C-2 MIC D-2
For all radius For all radius For all radius For all radius
from 28 inches to 20 feet from 30 inches to 20 feet from 30 inches to 20 feet from 30 inches to 20 feet

33 1/2"
42" 32" 45" 45" 45"
33 1/2" 35"

10 1/2"
12 1/2" 10 1/2" 10 1/2"
TOP VIEW TOP VIEW TOP VIEW TOP VIEW
MIC A-3 MIC B-3 MIC C-3 MIC D-3
For all radius For all radius For all radius For all radius
from 28 inches to 20 feet from 30 inches to 20 feet from 30 inches to 20 feet from 30 inches to 20 feet
A LL DIMENSIONS ARE APPR O XIM ATE .
