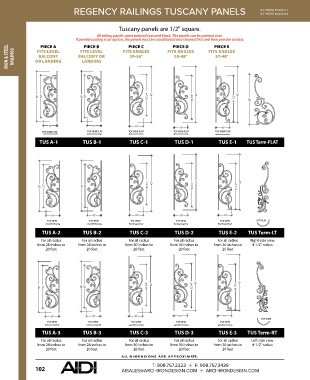

REGENCY RAILINGS TUSCANY PANELS U.S. PATENT #5,820,111
U.S. PATENT #6,059,269

Tuscany panels are 1/2" square.
All railing panels come painted textured black. The panels can be painted over.
If powdercoating is an option, the panels must be sandblasted and cleaned first and then powder coated.
IRON & STEEL RAILINGS OR LANDING BALCONY OR FITS ANGLES FITS ANGLES FITS ANGLES
PIECE B
PIECE A
PIECE C
PIECE E
PIECE D
FITS LEVEL
FITS LEVEL
37-48°
20-36°
BALCONY
20-48°
LANDING
30 3/4" 42" 42" 42"
38" 32" 38" 32" 32 3/4" 34 1/2" 38"

10" 10" 10"
10" 10"
TOP VIEW FLAT TOP VIEW FLAT TOP VIEW FLAT TOP VIEW FLAT TOP VIEW FLAT
TUS A-1 TUS B-1 TUS C-1 TUS D-1 TUS E-1 TUS Term-FLAT

38" 32" 38" 32" 30 3/4" 42" 32 3/4" 42" 34 1/2" 42"

10" 10" 10" 10" 10"
TOP VIEW TOP VIEW TOP VIEW TOP VIEW TOP VIEW TOP VIEW

TUS A-2 TUS B-2 TUS C-2 TUS D-2 TUS E-2 TUS Term-LT
For all radius For all radius For all radius For all radius For all radius Right side view
from 28 inches to from 28 inches to from 30 inches to from 30 inches to from 30 inches to 4-1/2" radius
20 feet 20 feet 20 feet 20 feet 20 feet

38" 32" 38" 32" 30 3/4" 42" 32 3/4" 42" 34 1/2" 42"

10" 10" 10" 10" 10"
TOP VIEW
TOP VIEW TOP VIEW TOP VIEW TOP VIEW TOP VIEW
TUS A-3 TUS B-3 TUS C-3 TUS D-3 TUS E-3 TUS Term-RT
For all radius For all radius For all radius For all radius For all radius Left side view
from 28 inches to from 28 inches to from 30 inches to from 30 inches to from 30 inches to 4-1/2" radius
20 feet 20 feet 20 feet 20 feet 20 feet
A LL DIMENSIONS ARE APPR O XIM ATE .
