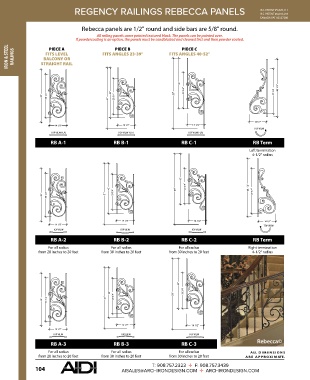

REGENCY RAILINGS REBECCA PANELS U.S. PATENT #5,820,111
U.S. PATENT #6,059,269
CANADA PAT #2327280
Rebecca panels are 1/2" round and side bars are 5/8" round.
All railing panels come painted textured black. The panels can be painted over.
If powdercoating is an option, the panels must be sandblasted and cleaned first and then powder coated.
IRON & STEEL RAILINGS STRAIGHT RAIL FITS ANGLES 23-39° FITS ANGLES 40-52°
PIECE A
PIECE C
PIECE B
FITS LEVEL
BALCONY OR

42"
29 3/4" 37 3/4" 48 1/2"
42"
44" 36 1/2" 51" 29 3/4" 59"

14 1/2"
14 1/2" 14 1/2" 14 1/2"
TOP VIEW
TOP VIEW FLAT TOP VIEW FLAT TOP VIEW FLAT
RB A-1 RB B-1 RB C-1 RB Term
Left termination
4-1/2" radius

42"
29 3/4"
42" 59" 48 1/2" 37 3/4"
44" 36 1/2" 51" 29 3/4"

14 1/2" 14 1/2" 14 1/2"
14 1/2"
TOP VIEW
TOP VIEW TOP VIEW TOP VIEW
RB A-2 RB B-2 RB C-2 RB Term
For all radius For all radius For all radius Right termination
from 28 inches to 20 feet from 30 inches to 20 feet from 30 inches to 20 feet 4-1/2" radius

42"
42" 59" 29 3/4"
44" 36 1/2" 51" 29 3/4"

14 1/2" 14 1/2"
14 1/2"
TOP VIEW TOP VIEW TOP VIEW
RB A-3 RB B-3 RB C-3 Rebecca©
For all radius For all radius For all radius A LL DIMENSIONS
from 28 inches to 20 feet from 30 inches to 20 feet from 30 inches to 20 feet ARE APPR O XIM ATE .
