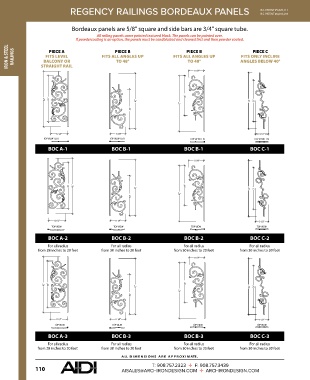

REGENCY RAILINGS BORDEAUX PANELS U.S. PATENT #5,820,111
U.S. PATENT #6,059,269

Bordeaux panels are 5/8" square and side bars are 3/4" square tube.
All railing panels come painted textured black. The panels can be painted over.
If powdercoating is an option, the panels must be sandblasted and cleaned first and then powder coated.
IRON & STEEL RAILINGS BALCONY OR FITS ALL ANGLES UP FITS ALL ANGLES UP ANGLES BELOW 40°
PIECE B
PIECE B
PIECE A
PIECE C
FITS ONLY INCLINE
FITS LEVEL
TO 48°
TO 48°
STRAIGHT RAIL
11 1/4"

30"
42" 35" 42" 42" 31"
42"
30"

12 1/2" 11 1/4" 9 1/2"
TOP VIEW FLAT TOP VIEW FLAT TOP VIEW FLAT TOP VIEW FLAT
BOC A-1 BOC B-1 BOC B-1 BOC C-1

11 1/4"

35" 42" 42" 30" 42" 31"
42"
30"

12 1/2" 11 1/4" 9 1/2"
TOP VIEW TOP VIEW TOP VIEW TOP VIEW
BOC A-2 BOC B-2 BOC B-2 BOC C-2

For all radius For all radius For all radius For all radius
from 28 inches to 20 feet from 30 inches to 20 feet from 30 inches to 20 feet from 30 inches to 20 feet
11 1/4"

42" 35" 42" 30" 42" 31"
42"
30"

12 1/2" 11 1/4" 9 1/2"
TOP VIEW TOP VIEW TOP VIEW TOP VIEW

BOC A-3 BOC B-3 BOC B-3 BOC C-3
For all radius For all radius For all radius For all radius
from 28 inches to 20 feet' from 30 inches to 20 feet from 30 inches to 20 feet from 30 inches to 20 feet
A LL DIMENSIONS ARE APPR O XIM ATE .
