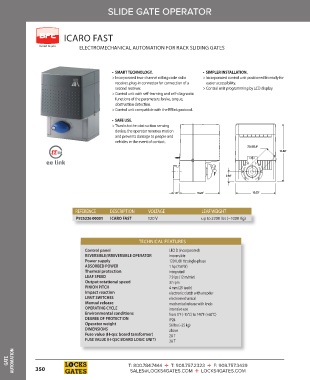

Page 352 - Catalog

SLIDE GATE OPERATOR

ICARO FAST

ELECTROMECHANICAL AUTOMATION FOR RACK SLIDING GATES

• SMART TECHNOLOGY. • SIMPLER INSTALLATION.
> Incorporated two-channel rolling code radio > Incorporated control unit positioned frontally for
receiver, plug-in connector for connection of a easier accessibility.
second receiver. > Control unit programming by LCD display.
> Control unit with self-learning and self-diagnostic
functions of the parameters: brake, torque,
obstruction detection.
> Control unit compatible with the EElink protocol.
• SAFE USE.
> Thanks to the obstruction sensing
device, the operator reverses motion
and prevents damage to people and
vehicles in the event of contact.
Z25 Ø3.9"
14.80"

2.56"

1.57" 10.23" 10.23"

REFERENCE DESCRIPTION VOLTAGE LEAF WEIGHT
P925226 00001 ICARO FAST 120 V up to 2200 lbs (~1000 Kg)

TECHNICAL FEATURES

Control panel LEO D (incorporated)
REVERSIBLE/IRREVERSIBLE OPERATOR irreversible
Power supply 120 V, 60 Hz single-phase
ABSORBED POWER 1 hp (750 W)
Thermal protection integrated
LEAF SPEED 7.9 ips (12 m/min)
Output rotational speed 37 rpm
PINION PITCH 4 mm (25 teeth)
Impact reaction electronic clutch with encoder
LIMIT SWITCHES electromechanical
Manual release mechanical release with knob
OPERATING CYCLE intensive use
Environmental conditions from 5°F (-15°C) to 140°F (+60°C)
DEGREE OF PROTECTION IP24
Operator weight 56 lbs (~25 kg)
DIMENSIONS above
Fuse value (H-qsc board tansformer) 2A T
FUSE VALUE HQSC BOARD LOGIC UNIT 2A T
