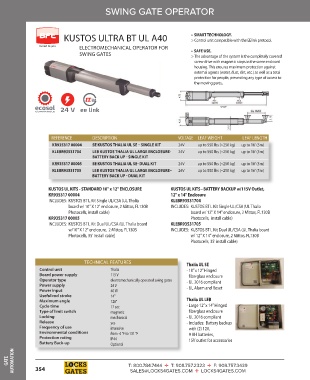

Page 356 - Catalog

SWING GATE OPERATOR

KUSTOS ULTRA BT UL A40 • SMART TECHNOLOGY.
> Control unit compatible with the EElink protocol.
ELECTROMECHANICAL OPERATOR FOR • SAFE USE.
SWING GATES > The advantage of the system is the completely covered
screw drive with magnetic stops in the same enclosed
housing. This ensures maximum protection against
external agents (water, dust, dirt, etc.) as well as a total
protection for people, preventing any type of access to
the moving parts..

REFERENCE DESCRIPTION VOLTAGE LEAF WEIGHT LEAF LENGTH
KR935317 00004 SE KUSTOS THALIA UL SE SINGLE KIT 24V up to 550 lbs (~250 kg) up to 16' (5m)
KLEBR93531704 LEB KUSTOS THALIA UL LARGE ENCLOSURE 24V up to 550 lbs (~250 kg) up to 16' (5m)
BATTERY BACK UP SINGLE KIT
KR935317 00005 SE KUSTOS THALIA UL SE DUAL KIT 24V up to 550 lbs (~250 kg) up to 16' (5m)
KLEBR93531705 LEB KUSTOS THALIA UL LARGE ENCLOSURE 24V up to 550 lbs (~250 kg) up to 16' (5m)
BATTERY BACK UP DUAL KIT

KUSTOS UL KITS - STANDARD 10" x 12" ENCLOSURE KUSTOS UL KITS - BATTERY BACKUP w/115V Outlet,
KR935317 00004 12" x 14" Enclosure
INCLUDES: KUSTOS BT L Kit Single UL/CSA (UL Thalia KLEBR93531704
board w/ 10" X 12" enclosure, 2 Mittos, FL130B INCLUDES: KUSTOS BT L Kit Single UL/CSA (UL Thalia
Photocells, install cable) board w/ 12" X 14" enclosure, 2 Mittos, FL130B
KR935317 00005 Photocells, install cable)
INCLUDES: KUSTOS BT L Kit Dual UL/CSA (UL Thalia board KLEBR93531705
w/10" X 12" enclosure, 2 Mittos, FL130B INCLUDES: KUSTOS BT L Kit Dual UL/CSA (UL Thalia board
Photocells, 35' install cable) w/ 12" X 14" enclosure, 2 Mittos, FL130B
Photocells, 35' install cable)

TECHNICAL FEATURES Thalia UL SE
Control unit Thalia - 10” x 12” Hinged
Board power supply 115 V berglass enclosure
Operator type electromechanically operated swing gates - UL 2016 compliant
Power supply 24 V - UL Alarm and Reset
Power input 40 W
Useful rod stroke 14"
Maximum angle 126° Thalia UL LEB
Cycle time 17 sec - Large 12” x 14” Hinged
Type of limit switch magnetic berglass enclosure
Locking mechanical - UL 2016 compliant
Release yes - Includes: Battery backup
Frequency of use intensive with (2) 12V,
Environmental conditions from -4 °F to 131 °F 9 AH batteries,
Protection rating IP44 15V outlet for accessories
Battery Back-up Optional
