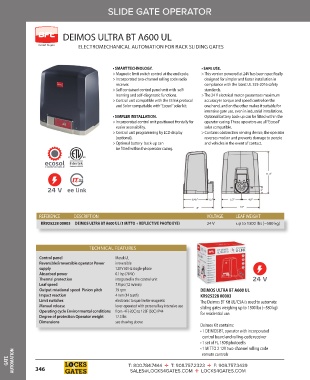

Page 348 - Catalog

SLIDE GATE OPERATOR

DEIMOS ULTRA BT A600 UL

ELECTROMECHANICAL AUTOMATION FOR RACK SLIDING GATES

• SMART TECHNOLOGY. • SAFE USE.
> Magnetic limit switch control at the end cycle. > This version powered at 24V has been specically
> Incorporated two-channel rolling code radio designed for simpler and faster installation in
receiver. compliance with the latest UL 325-2016 safety
> Self contained control panel unit with self- standards.
learning and self-diagnostic functions. > The 24 V electrical motor guarantees maximum
> Control unit compatible with the EElink protocol accuracy in torque and speed control on the
and Solor compatiable with “Ecosol” solar kit. one hand, and on the other makes it suitable for
intensive gate use, even in industrial installations.
• SIMPLER INSTALLATION. Optional battery back-up can be tted within the
> Incorporated control unit positioned frontally for operator casing. These operators are all “Ecosol”
easier accessibility. solar compatible.
> Control unit programming by LCD display > Contains obstruction sensing device, the operator
(optional). reverses motion and prevents damage to people
> Optional battery back-up can and vehicles in the event of contact.
be tted within the operator casing.

REFERENCE DESCRIPTION VOLTAGE LEAF WEIGHT
KR925228 00003 DEIMOS ULTRA BT A600 UL 1 MITTO + REFLECTIVE PHOTO EYE 24 V up to 1300 lbs (~580 kg)

TECHNICAL FEATURES

Control panel Merak UL
Reversible/irreversible operator Power irreversible
supply 120 V 60 Hz single-phase
Absorbed power 0.1 hp (70 W)
Thermal protection integrated in the control unit
Leaf speed 7.9 ips (12 m/min)
Output rotational speed Pinion pitch 79 rpm DEIMOS ULTRA BT A600 UL
Impact reaction 4 mm (14 teeth) KR925228 00003
Limit switches electronic torque limiter magnetic The Deimos BT Kit UL/CSA is used to automate
Manual release lever-operated with personal key intensive use sliding gates weighing up to 1300 lbs (~580 kg)
Operating cycle Environmental conditions from -4F(-20C) to 122F (50C) IP44 for residential use.
Degree of protection Operator weight 17.3 lbs
Dimensions see drawing above
Deimos Kit contains:
• 1 DEIMOS BT, operator with incorporated
control board and rolling-code receiver
• 1 set of FL 130B photocells
• 1 MITTO 2 12V two-channel rolling code
AUTOMATION 346 T: 800.784.7444 T: 908.757.2323 F: 908.757.3439
remote controls
