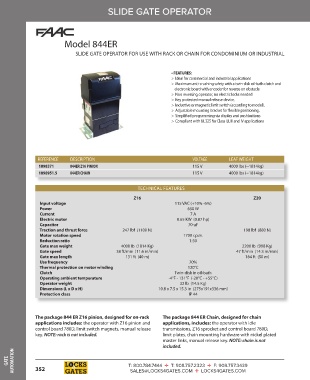

SLIDE GATE OPERATOR

Model 844ER

SLIDE GATE OPERATOR FOR USE WITH RACK OR CHAIN FOR CONDOMINIUM OR INDUSTRIAL

• FEATURES:
> Ideal for commercial and industrial applications
> Maximum anti-crushing safety with a twin-disk oil-bath clutch and
electronic board with encoder for reverse on obstacle
> Non reversing operator, no electric locks needed
> Key protected manual release device.
> Inductive or magnetic limit switch (according to model).
> Adjustable mounting bracket for exible positioning.
> Simplied programming via display and pushbuttons
> Compliant with UL325 for Class I,II,III and IV applications

REFERENCE DESCRIPTION VOLTAGE LEAF WEIGHT
1098371 844ER Z16 PINION 115 V 4000 lbs (~1814kg)
1098951.5 844ER CHAIN 115 V 4000 lbs (~1814kg)

TECHNICAL FEATURES
Z16 Z20
Input voltage 115 VAC (+10% -6%)
Power 650 W
Current 7 A
Electric motor 0.65 KW (0.87 hp)
Capacitor 70 uF
Traction and thrust force 247 lbf (1100 N) 198 lbf (880 N)
Motor rotation speed 1700 r.p.m.
Reduction ratio 1:30
Gate max weight 4000 lb (1814 Kg) 2200 lb (998 Kg)
Gate speed 38 ft/min (11.6 m/min) 47 ft/min (14.3 m/min)
Gate max length 131 ft (40 m) 164 ft (50 m)
Use frequency 70%
Thermal protection on motor winding 120°C
Clutch Twin-disk in oil-bath
Operating ambient temperature -4°F - 131°F (-20°C - +55°C)
Operator weight 32 lb (14.5 Kg)
Dimensions (L x D x H) 10.8 x 7.5 x 15.3 in (275x191x336 mm)
Protection class IP 44

The package 844 ER Z16 pinion, designed for on-rack The package 844 ER Chain, designed for chain
applications includes: the operator with Z16 pinion and applications, includes: the operator with idle
control board 780D, limit switch magnets, manual release transmissions, Z16 sprocket and control board 780D,
key. NOTE: rack is not included. limitplates, chain mounting hardware with nickel plated
master links, manual release key. NOTE: chain is not
included.
