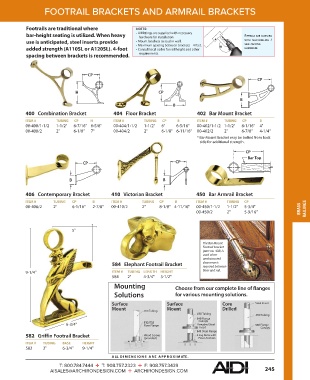

FOOTRAIL BRACKETS AND ARMRAIL BRACKETS

Footrails are traditional where NOTES:
bar-height seating is utilized. When heavy • All fittings are supplied with necessary FITTINGS ARE SUPPLIED
hardware for installation
use is anticipated, steel inserts provide • Mount brackets to stud in wall. WITH SELF-DRILLING /
SELF-TAPPING
added strength (A110SL or A120SL). 4-foot • Maximum spacing between brackets – 4 feet. HARDWARE
• Consult local codes for rail height and other
spacing between brackets is recommended. requirements.

CP
CP

H CP
B
B
400 Combination Bracket 404 Floor Bracket 402 Bar Mount Bracket

ITEM # TUBING CP H ITEM # TUBING CP B ITEM # TUBING CP B
00-400/1-1/2 1-1/2" 6-7/16" 6-5/8" 00-404/1-1/2 1-1/2" 6" 6-5/16" 00-402/1-1/2 1-1/2" 6-1/16" 4"
00-400/2 2" 6-1/8" 7" 00-404/2 2" 6-1/8" 6-11/16" 00-402/2 2" 6-7/8" 4-1/4"
* Bar Mount Bracket may be bolted from back
side for additional strength.
CP
Bar Top
CP CP

B B

406 Contemporary Bracket 410 Victorian Bracket 450 Bar Armrail Bracket
ITEM # TUBING CP B ITEM # TUBING CP B ITEM # TUBING CP
00-406/2 2" 6-1/16" 2-7/8" 00-410/2 2" 8-1/8" 4-11/16" 00-450/1-1/2 1-1/2" 5-3/4" BRASS
00-450/2 2" 5-9/16" RAILINGS

5"

The Bar Mount
Footrail bracket
(part no. 402) is
used when
unobstructed
584 Elephant Footrail Bracket clearance is
required between
9-1/4" ITEM # TUBING LENGTH HEIGHT floor and rail.
584 2" 4-3/4" 3-1/2"

Mounting Choose from our complete line of flanges
Solutions for various mounting solutions.

Surface Surface Core Steel Insert
Mount Mount Drilled
.050 Tubing
.050 Tubing .050 Tubing
540 Flange
Canopy
6-3/4" 512/532 Threaded Steel 540 Flange
Floor Flange
Insert Canopy
541 Steel Flange
582 Griffin Footrail Bracket Wood Screws 4 Lag Bolts with
(provided) Floor Anchors
ITEM # TUBING BASE HEIGHT
582 2" 6-3/4" 9-1/4"
A LL DIMENSIONS ARE APPR O XIM ATE .
