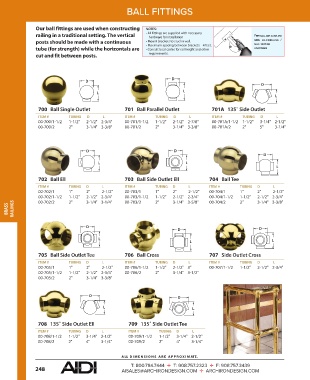

Page 250 - Catalog

BALL FITTINGS

Our ball fittings are used when constructing NOTES:
railing in a traditional setting. The vertical • All fittings are supplied with necessary FITTINGS ARE SUPPLIED
hardware for installation
posts should be made with a continuous • Mount brackets to stud in wall. WITH SELF-DRILLING /
SELF-TAPPING
tube (for strength) while the horizontals are • Maximum spacing between brackets – 4 feet. HARDWARE
• Consult local codes for rail height and other
cut and fit between posts. requirements.

D
D
D
L
L
L
700 Ball Single Outlet 701 Ball Parallel Outlet 701A 135˚ Side Outlet

ITEM # TUBING D L ITEM # TUBING D L ITEM # TUBING D L
00-700/1-1/2 1-1/2" 2-1/2" 2-3/4" 00-701/1-1/2 1-1/2" 2-1/2" 2-7/8" 00-701A/1-1/2 1-1/2" 3-1/4" 2-1/2"
00-700/2 2" 3-1/4" 3-3/8" 00-701/2 2" 3-1/4" 3-3/8" 00-701A/2 2" 5" 3-1/4"

D D
D
L L
L

702 Ball Ell 703 Ball Side Outlet Ell 704 Ball Tee

ITEM # TUBING D L ITEM # TUBING D L ITEM # TUBING D L
00-702/1 1" 2" 2-1/2" 00-703/1 1" 2" 2-1/2" 00-704/1 1" 2" 2-1/2"
00-702/1-1/2 1-1/2" 2-1/2" 2-3/4" 00-703/1-1/2 1-1/2" 2-1/2" 2-3/4" 00-704/1-1/2 1-1/2" 2-1/2" 2-3/4"
00-703/2
3-1/4" 3-5/8"
2"
2"
2"
3-1/4" 3-3/8"
00-702/2
3-1/4" 3-1/4"
00-704/2
BRASS RAILINGS
D
D D
L
L L
705 Ball Side Outlet Tee 706 Ball Cross 707 Side Outlet Cross
ITEM # TUBING D L ITEM # TUBING D L ITEM # TUBING D L
00-705/1 1" 2" 2-1/2" 00-706/1-1/2 1-1/2" 2-1/2" 3" 00-707/1-1/2 1-1/2" 2-1/2" 2-3/4"
00-705/1-1/2 1-1/2" 2-1/2" 2-3/4" 00-706/2 2" 3-1/4" 3-1/2"
00-705/2 2" 3-1/4" 3-3/8"

D D
L L

708 135˚ Side Outlet Ell 709 135˚ Side Outlet Tee
ITEM # TUBING D L ITEM # TUBING D L
00-708/1-1/2 1-1/2" 3-1/4" 2-1/2" 00-709/1-1/2 1-1/2" 3-1/4" 2-1/2"
00-708/2 2" 4" 3-1/4" 00-709/2 2" 4" 3-1/4"

A LL DIMENSIONS ARE APPR O XIM ATE .
