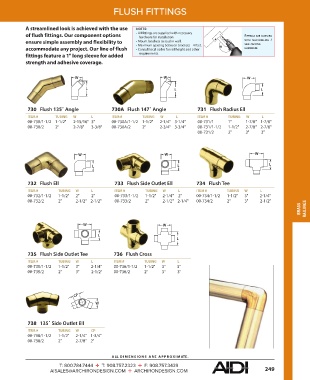

Page 251 - Catalog

FLUSH FITTINGS

A streamlined look is achieved with the use NOTES:
of flush fittings. Our component options • All fittings are supplied with necessary FITTINGS ARE SUPPLIED
hardware for installation
ensure simple assembly and flexibility to • Mount brackets to stud in wall. WITH SELF-DRILLING /
SELF-TAPPING
accommodate any project. Our line of flush • Maximum spacing between brackets – 4 feet. HARDWARE
• Consult local codes for rail height and other
fittings feature a 1" long sleeve for added requirements.
strength and adhesive coverage.

W W W
L L L

730 Flush 135˚ Angle 730A Flush 147˚ Angle 731 Flush Radius Ell

ITEM # TUBING W L ITEM # TUBING W L ITEM # TUBING W L
00-730/1-1/2 1-1/2" 2-15/16" 3" 00-730A/1-1/2 1-1/2" 2-1/4" 3-1/4" 00-731/1 1" 1-7/8" 1-7/8"
00-730/2 2" 2-7/8" 3-3/8" 00-730A/2 2" 2-3/4" 3-3/4" 00-731/1-1/2 1-1/2" 2-7/8" 2-7/8"
00-731/2 2" 3" 3"

W W W

L L L

732 Flush Ell 733 Flush Side Outlet Ell 734 Flush Tee

ITEM # TUBING W L ITEM # TUBING W L ITEM # TUBING W L
00-732/1-1/2 1-1/2" 2" 2" 00-733/1-1/2 1-1/2" 2-1/4" 2" 00-734/1-1/2 1-1/2" 3" 2-1/4"
00-732/2 2" 2-1/2" 2-1/2" 00-733/2 2" 2-1/2" 2-1/4" 00-734/2 2" 3" 2-1/2"
BRASS RAILINGS

W W

L
L

735 Flush Side Outlet Tee 736 Flush Cross
ITEM # TUBING W L ITEM # TUBING W L
00-735/1-1/2 1-1/2" 3" 2-1/4" 00-736/1-1/2 1-1/2" 3" 3"
00-735/2 2" 3" 2-1/2" 00-736/2 2" 3" 3"

CP

W

738 135˚ Side Outlet Ell

ITEM # TUBING W CP
00-738/1-1/2 1-1/2" 2-1/4" 1-3/4"
00-738/2 2" 2-7/8" 2"

A LL DIMENSIONS ARE APPR O XIM ATE .
