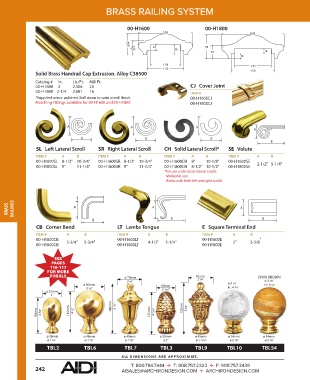

Page 244 - Catalog

BRASS RAILING SYSTEM

00-H1600 00-H1800

Solid Brass Handrail Cap Extrusion. Alloy C38500
Catalog # in. Lb./Ft. Mill Ft.
00-H1600 2 2.306 20 CJ Cover Joint
00-H1800 2-1/4 2.681 16 ITEM #
*Supplied mirror polished. Buff down to satin or mill finish. 00-H1600CJ
Matching Fittings available for 00-H1600 and 00-H1800 00-H1800CJ

A A A
A
B B B
B
SL Left Lateral Scroll SR Right Lateral Scroll CH Solid Lateral Scroll* SE Volute
ITEM # A B ITEM # A B ITEM # A B ITEM # A B
00-H1600SL 8-1/2" 10-3/4" 00-H1600SR 8-1/2" 10-3/4" 00-H1600CH 8" 10-1/8" 00-H1600SE 2-1/2" 5-1/4"
00-H1800SL 9" 11-1/4" 00-H1800SR 9" 11-1/4" 00-H1800CH 8-1/2" 10-1/2" 00-H1800SE
* For use under brass lateral scrolls.
Malleable iron.
Works with both left and right scrolls.

BRASS RAILINGS A A A

B B B
CB Corner Bend LT Lambs Tongue E Square Terminal End
ITEM # A B ITEM # A B ITEM # A B
00-H1600CB 5-3/4" 5-3/4" 00-H1600LT 4-1/2" 5-1/4" 00-H1600E 2" 3-5/8 "
00-H1800CB 00-H1800LT 00-H1800E

SEE
PAGES
116117
FOR MORE
FINIALS ø 70mm 70mm ONYX BROWN
2 3 /4” 2 3 /4” ø 3 3 /4”
ø 80mm 63mm ø 3 1 /2” H : 5 1 /4”
3 1 /8” 2 1 /16” H : 4 3 /4”
ø 52mm
2”

95mm 3 3 /4” 115mm 4 1 /2” 140mm 5 1 /2” 125mm 4 15 /16” 135mm 5 3 /8”

ø 36mm ø 48mm ø 48mm ø 50mm ø 45mm ø 54mm ø 54mm
ø 45mm
ø 1 3 /8” ø 1 7 /8” ø 1 7 /8” ø 2” ø 1 13 /16” ø 2 1 /8” ø 2 1 /8”
TBL2 TBL6 TBL7 TBL3 TBL9 TBL10 TBL54
A LL DIMENSIONS ARE APPR O XIM ATE .
