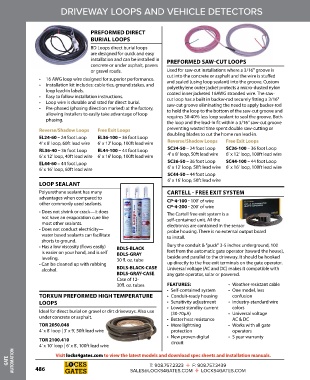

Page 488 - CATALOG

DRIVEWAY LOOPS AND VEHICLE DETECTORS

PREFORMED DIRECT
BURIAL LOOPS

BD Loops direct burial loops
are designed for quick and easy
installation and can be installed in PREFORMED SAW-CUT LOOPS
concrete or under asphalt, pavers
or gravel roads. Used for saw-cut installations where a 3/16" groove is
cut into the concrete or asphalt and the wire is stuffed
• 16 AWG loop wire designed for superior performance. and sealed (using loop sealant) into the groove. Custom
• Installation kit includes: cable ties, ground stakes, and polyethylene outer jacket protects a micro-dusted nylon
loop lead-in labels.
• Easy to follow installation instructions. coated inner jacketed 16AWG stranded wire. The saw-
cut loop has a built in backer-rod securely fitting a 3/16"
• Loop wire is durable and rated for direct burial. saw-cut groove eliminating the need to apply backer-rod
• Pre-phased (phasing direction marked) at the factory, to hold the loop to the bottom of the saw-cut groove and
allowing installers to easily take advantage of loop requires 30-40% less loop sealant to seal the groove. Both
phasing.
the loop and the lead-in fit within a 3/16" saw-cut groove
Reverse/Shadow Loops Free Exit Loops preventing wasted time spent double saw-cutting or
EL24-60 – 24 foot Loop EL36-100 – 36 foot Loop doubling blades to cut the home run lead-in.
4' x 8' loop, 60ft lead wire 6' x 12' loop, 100ft lead wire Reverse/Shadow Loops Free Exit Loops
RL36-40 – 36 foot Loop EL44-100 – 44 foot Loop SC24-50 – 24 foot Loop SC36-100 – 36 foot Loop
6' x 12' loop, 40ft lead wire 6' x 16' loop, 100ft lead wire 4' x 8' loop, 50ft lead wire 6' x 12' loop, 100ft lead wire
EL44-60 – 44 foot Loop SC36-50 – 36 foot Loop SC44-100 – 44 foot Loop
6' x 16' loop, 60ft lead wire 6' x 12' loop, 50ft lead wire 6' x 16' loop, 100ft lead wire
SC44-50 – 44 foot Loop
6' x 16' loop, 50ft lead wire
LOOP SEALANT
Polyurethane sealant has many CARTELL - FREE EXIT SYSTEM
advantages when compared to CP-4-100 - 100' of wire
other commonly used sealants.
CP-4-200 - 200' of wire
• Does not shrink or crack—it does The Cartell free exit system is a
not have an evaporation cure like self-contained unit. All the
most other sealants. electronics are contained in the sensor
• Does not conduct electricity— probe housing. There is no external output board
water based sealants can facilitate to install.
shorts to ground.
• Has a low viscosity (flows easily) BDLS-BLACK Bury the conduit & "puck" 3-5 inches underground, 100
is easier on your hand, and is self BDLS-GRAY feet from the automatic gate operator (toward the house),
leveling. 30 fl. oz. tube beside and parallel to the driveway. It should be hooked
• Can be cleaned up with rubbing up directly to the free exit terminals on the gate operator.
alcohol. BDLS-BLACK-CASE Universal voltage (AC and DC) makes it compatible with
BDLS-GRAY-CASE any gate operator, solar or powered.
Case of 12-
30fl. oz. tubes FEATURES: • Weather-resistant cable
• Self-contained system • One model, less
TORXUN PREFORMED HIGH TEMPERATURE • Conduit-ready housing confusion
LOOPS • Sensitivity adjustment • Industry-standard wire
• Lowest standby current colors
Ideal for direct burial on gravel or dirt driveways. Also use (30-70µA) • Universal voltage
under concrete or asphalt. • Better heat resistance AC & DC
TOR 2050.048 • More lightning • Works with all gate
4' x 8' loop | 3' x 9', 50ft lead wire protection operators
• New proven digital • 5 year warranty
TOR 2100.410 circuit
4' x 10' loop | 6' x 8', 100ft lead wire
