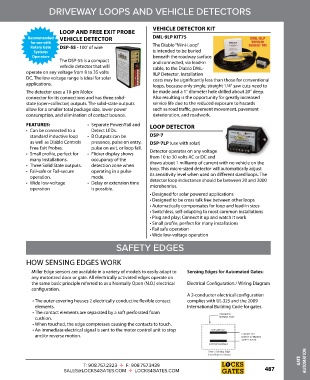

Page 489 - CATALOG

DRIVEWAY LOOPS AND VEHICLE DETECTORS

VEHICLE DETECTOR KIT
LOOP AND FREE EXIT PROBE
Recommended VEHICLE DETECTOR DML-9LP KIT75
for use with The Diablo “Mini-Loop”
Rotary Gate DSP-55 - 100' of wire
Systems is intended to be buried
Operators beneath the roadway surface
The DSP-55 is a compact and connected, via lead-in
vehicle detector that will cable, to the Diablo DML-
operate on any voltage from 8 to 35 volts 9LP Detector. Installation
DC. The low voltage range is ideal for solar costs may be significantly less than those for conventional
applications. loops, because only single, straight 1/4" saw cuts need to
The detector uses a 10-pin Molex be made and a 1" diameter hole drilled about 20" deep.
connector for its connections and has three solid- Also resulting is the opportunity for greatly increased
state (open-collector) outputs. The solid-state outputs service life due to the reduced exposure to hazards
allow for a smaller total package size, lower power such as road traffic, pavement movement, pavement
consumption, and elimination of contact bounce. deterioration, and roadwork.
FEATURES: • Separate Power/Fail and LOOP DETECTOR
• Can be connected to a Detect LEDs.
standard inductive loop • B Outputs can be DSP-7
as well as Diablo Controls presence, pulse on entry, DSP-7LP (use with solar)
Free Exit Probes. pulse on exit, or loop fail.
• Small profile, perfect for • Flicker display shows Detector operates on any voltage
many installations. occupancy of the from 10 to 30 volts AC or DC and
• Three Solid State outputs. detection zone when draws about 1 milliamp of current with no vehicle on the
• Fail-safe or Fail-secure operating in a pulse loop. This micro-sized detector will automatically adjust
operation. mode. its sensitivity level when used on different sized loops. The
• Wide low-voltage • Delay or extension time detector loop inductance should be between 20 and 2000
operation is possible. microhenries.
• Designed for solar powered applications
• Designed to be cross talk free between other loops
• Automatically compensates for loop and lead-In sizes
• Switchless, self-adapting to most common installations
• Plug and play; Connect it up and watch it work
• Small profile, perfect for many installations
• Fail safe operation
• Wide low-voltage operation
SAFETY EDGES

HOW SENSING EDGES WORK

Miller Edge sensors are available in a variety of models to easily adapt to Sensing Edges for Automated Gates:
any motorized door or gate. All electrically activated edges operate on
the same basic principle referred to as a Normally Open (N.O.) electrical Electrical Configuration / Wiring Diagram
configuration.
A 2-conductor electrical configuration
• The outer covering houses 2 electrically conductive flexible contact complies with UL-325 and the 2009
elements. International Building Code for gates.
• The contact elements are separated by a soft perforated foam
cushion.
• When touched, the edge compresses causing the contacts to touch.
• An immediate electrical signal is sent to the motor control unit to stop
and/or reverse motion.

GATE AUTOMATION
T: 908.757.2323 ✛ F: 908.757.3439
SALES@LOCKS4GATES.COM ✛ LOCKS4GATES.COM 487
