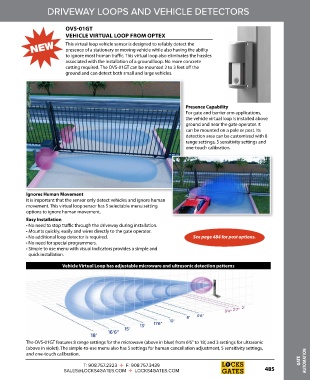

Page 487 - CATALOG

DRIVEWAY LOOPS AND VEHICLE DETECTORS

OVS-01GT
VEHICLE VIRTUAL LOOP FROM OPTEX
This virtual loop vehicle sensor is designed to reliably detect the
presence of a stationary or moving vehicle while also having the ability
to ignore most human traffic. This virtual loop also eliminates the hassles
associated with the installation of a ground loop. No more concrete
cutting required. The OVS-01GT can be mounted 2 to 3 feet off the
ground and can detect both small and large vehicles.

Presence Capability
For gate and barrier arm applications,
the vehicle virtual loop is installed above
ground and near the gate operator. It
can be mounted on a pole or post. Its
detection area can be customized with 8
range settings, 5 sensitivity settings and
one-touch calibration.

Ignores Human Movement
It is important that the sensor only detect vehicles and ignore human
movement. This virtual loop sensor has 5 selectable menu setting
options to ignore human movement.
Easy Installation
• No need to stop traffic through the driveway during installation.
• Mounts quickly, easily and wires directly to the gate operator.
• No additional loop detector is required. See page 484 for post options.
• No need for special programmers.
• Simple to use menu with visual indicators provides a simple and
quick installation.

Vehicle Virtual Loop has adjustable microware and ultrasonic detection patterns

The OVS-01GT features 8 range settings for the microwave (above in blue) from 6'6" to 18', and 3 settings for ultrasonic
(above in violet). The simple-to-use menu also has 5 settings for human cancellation adjustment, 5 sensitivity settings,
and one-touch calibration.
