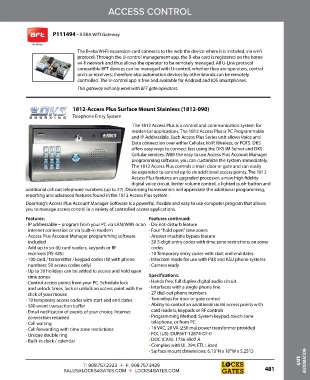

Page 483 - CATALOG

ACCESS CONTROL

P111494 - B EBA WIFI Gateway

The B-eba Wi-Fi expansion card connects to the web the device where it is installed, via wi-fi
protocol. Through the U-control management app, the B-eba card is registered on the home
wi-fi network and thus allows the operator to be remotely managed. All U-Link protocol
compatible BFT devices can be managed with U-control, whether they are operators, central
units or receivers; therefore also automation devices by other brands can be remotely
controlled. The U-control app is free and available for Android and IOS smartphones.
This gateway will only work with BFT gate operators.

1812-Access Plus Surface Mount Stainless (1812-090)
Telephone Entry System

The 1812 Access Plus is a control and communication system for
residential applications. The 1812 Access Plus is PC Programmable
and IP Addressible. Each Access Plus Series unit allows Voice and
Data connection over either Cellular, VoIP, Wireless, or POTS. DKS
offers easy ways to connect fast using the DKS IM Server and DKS
Cellular services. With the easy to use Access Plus Account Manager
programming software, you can customize the system immediately.
The 1812 Access Plus controls a main door or gate and can easily
be expanded to control up to six additional access points. The 1812
Access Plus features an upgraded processor, a new high fidelity
digital voice circuit, better volume control, a lighted push-button and
additional call out telephone numbers (up to 27). Discerning homeowners will appreciate the additional programming,
reporting and advanced features found in the 1812 Access Plus system.
DoorKing's Access Plus Account Manager Software is a powerful, flexible and easy to use computer program that allows
you to manage access control in a variety of controlled access applications.

Features: Features continued:
• IP addressable – program from your PC via LAN/WAN or an • Do-not-disturb feature
internet connection or via built-in modem • Four “hold open” time zones
• Access Plus Account Manager programming software • Answer machine bypass feature
included • 50 5-digit entry codes with time zone restrictions on some
• Add up to six (6) card readers, keypads or RF codes
receivers (RS-485) • 10 Temporary entry codes with start and end dates
• 100 card / transmitter / keypad codes (50 with phone • Intercom mode for use with PBX and KSU phone systems
numbers; 50 access codes only) • Camera ready
• Up to 30 holidays can be added to access and hold open
time zones Specifications:
• Control access points from your PC. Schedule lock • Hands free, full duplex digital audio circuit.
and unlock times, lock or unlock an access point with the • Interfaces with a single phone line
click of your mouse • 27 dial-out phone numbers
• 10 temporary access codes with start and end dates • Two relays for door or gate control
• 500 event transaction buffer • Ability to control an additional six (6) access points with
• Email notification of events of your choice. Internet card readers, keypads or RF controls
connection required • Programming Method: System keypad, touch-tone
• Call waiting telephone, or from PC
• Call forwarding with time zone restrictions • 16 VAC, 20 VA (250 ma) power transformer provided
• Unique double ring • FCC (US): DUF6VT-12874-OT-0
• Built-in clock / calendar • DOC (CAN): 1736 4507 A
• Complies with UL 294; ETL Listed
• Surface mount dimensions: 6.13"H x 10"W x 5.25"D
GATE AUTOMATION
