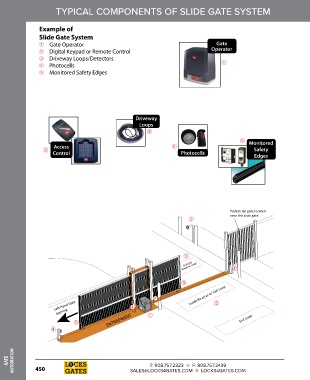

TYPICAL COMPONENTS OF SLIDE GATE SYSTEM
Example of
Slide Gate System
➀ Gate Operator Gate
➁ Digital Keypad or Remote Control Operator
➂ Driveway Loops/Detectors
➃ Photocells ➀
➄ Monitored Safety Edges
Driveway
Loops
➂
➄ Monitored
Access ➃
➁ Control Photocells Safety
Edges
Pedestrian gate located
near the slide gate.
Outside
Reverse Loop
Inside Reverse or Exit Loop
opening
ENTRAPMENT Exit Loop
