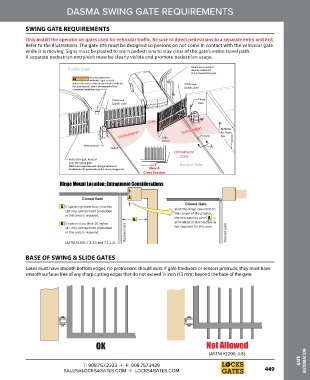

DASMA SWING GATE REQUIREMENTS

SWING GATE REQUIREMENTS

Only install the operator on gates used for vehicular traffic. Be sure to direct pedestrians to a separate entry and exit.
Refer to the illustrations. The gate site must be designed so persons do not come in contact with the vehicular gate
while it is moving. Signs must be posted to warn pedestrians to stay clear of the gate’s entire travel path.
A separate pedestrian entry/exit must be clearly visible and promote pedestrian usage.

Mount access control
Public Side
(1.8 m) beyond the gate.
Be sure to place the
WARNING WARNING signs on both
sides of the access point in clear view of vehicles. Photo eye
For your records, take a photograph of the (public side)
Photo eye Photo
(public side) eyes

WARNING
ZONE
ENTRAPMENT Edge ENTRAPMENT Curb Reflector
for Photo
Eye
sensor
Earth ground A
Curb
ENTRAPMENT
ZONE
Pedestrian gate located
near the swing gate.
Make sure a separate walk-through entrance is Secure Side
available and its pedestrian path is clearly designated. View A
Cross Section
Hinge Mount Location: Entrapment Considerations

A
Closed Gate
A If space is greater than 4 inches Closed Gate
With the hinge mounted on
the corner of the pilaster,
in this area is required.
A
B the entrapment zone is
B If space is less than 16 inches not required for this area.
Opened Gate Opened Gate
in this area is required.
(ASTM F2200: 7.1.1.1 and 7.1.1.2)

BASE OF SWING & SLIDE GATES

Gates must have smooth bottom edges, no protrusions should exist. If gate hardware or sensors protrude, they must have
smooth surfaces free of any sharp cutting edges that do not exceed ½ inch (13 mm) beyond the base of the gate.
