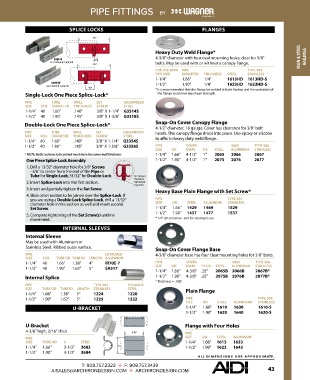

Page 45 - CATALOG

PIPE FITTINGS BY

SPLICE LOCKS FLANGES

3 3 /4"
Heavy Duty Weld Flange*
4-3/8" diameter with four oval mounting holes, clear for 3/8" IRON & STEEL RAILINGS
G3314S 3 /8"
U.S. Patent # 7,618,210 bolts. May be used with or without a canopy flange.
3 3 /4"
FOR USE WITH PIPE TYPE 304
PIPE SIZE DIAMETER THICKNESS STEEL STAINLESS
1-1/4" 1.66" 1/4" 1613HD 1613HD-S
G3354S 1-1/2" 1.90" 1/4" 1623HD 1623HD-S
U.S. Patent # 7,618,210
31 /32"
* It is recommended that the flange be welded at both the top and the underside of
Single-Lock One Piece Splice-Lock* the flange to achieve maximum strength.
PIPE TUBE WALL SET GALVANIZED
SIZE SCH. DIAMETER THICKNESS SCREW STEEL
1-1/4" 40 1.60" .140" 3/8" X 1-1/4" G3314S
1-1/2" 40 1.90" .145" 3/8" X 1-3/8" G3318S
Double-Lock One Piece Splice-Lock* Snap-On Cover Canopy Flange
4-1/2" diameter, 18 gauge. Cover has clearance for 3/8" bolt
PIPE TUBE WALL SET GALVANIZED heads. This canopy flange drops into place. Use epoxy or silicone
SIZE SCH. DIAMETER THICKNESS SCREW STEEL to affix to heavy duty weld flange..
1-1/4" 40 1.60" .140" 3/8" X 1-1/4" G3354S
1-1/2" 40 1.90" .145" 3/8" X 1-3/8" G3358S PIPE COVER 3003 TYPE 304
SIZE OD DIAM. HT. STEEL ALUMINUM STAINLESS
* NOTE: Both sections to be joined must have the same wall thickness 1-1/4" 1.66" 4-1/2" 1" 2065 2066 2067
One Piece Splice-Lock Assembly 1-1/2" 1.90" 4-1/2" 1" 2075 2076 2077
1. Drill a 13/32" diameter hole for 3/8" Screws
- 3/8" to center from the end of the Pipe or
Tube for Single-Lock; 31/32" for Double-Lock. 3 /8" Socket
Headless
2. Insert Splice-Lock into this first section. Set Screw
Cup End
3. Insert and partially tighten the Set Screw. Heavy Base Plain Flange with Set Screw*
4. Slide other section to be joined over the Splice-Lock. If
you are using a Double-Lock Splice-Lock, drill a 13/32" PIPE TYPE 304
diameter hole in this section as well and insert second SIZE OD STEEL ALUMINUM STAINLESS
Set Screw. 1-1/4" 1.66" 1429 1469 1529
5. Complete tightening of the Set Screw(s) until no 1-1/2" 1.90" 1437 1477 1537
movement. * 1/4"-20 set screw - not for structural use.
INTERNAL SLEEVES
Internal Sleeve
May be used with Aluminum or
Stainless Steel. Ribbed outer surface.
Snap-On Cover Flange Base
PIPE EXTRUDED 4-3/8" diameter base has four clear mounting holes for 3/8" bolts.
SIZE SCH. TUBE OD TUBE ID LENGTH ALUMINUM
1-1/4" 40 1.66" 1.38" 4" IR70E-7 PIPE COVER 3003 TYPE 304
1-1/2" 40 1.90" 1.62" 5" SA517 SIZE OD DIAM. THICK. STEEL ALUMINUM STAINLESS
1-1/4" 1.66" 4-3/8" .25" 2065B 2066B 2067B*
Internal Splice 1-1/2" 1.90" 4-3/8" .25" 2075B 2076B 2077B*
* Thickness = .188".
PIPE TYPE 304 14 GAUGE
SIZE TUBE OD TUBE ID LENGTH STAINLESS STEEL Plain Flange
1-1/4" 1.66" 1.38" 5" 1224 1220
1-1/2" 1.90" 1.62" 5" 1225 1222 PIPE TYPE 304
SIZE OD STEEL ALUMINUM STAINLESS
U-BRACKET 1-1/4" 1.66" 1610 1630 1610-S
1-1/2" 1.90" 1620 1640 1620-S

U-Bracket Flange with Four Holes
4-3/8" high, 3/16" thick 4 3 /8" PIPE
PIPE SIZE OD STEEL ALUMINUM
SIZE TUBE OD A STEEL 1-1/4" 1.66" 1613 1633
1-1/4" 1.66" 3-1/2" 3682 a 1-1/2" 1.90" 1623 1643
1-1/2" 1.90" 3-1/2" 3684
A LL DIMENSIONS ARE APPR O XIM ATE .
T: 908.757.2323 ✛ F: 908.757.3439
AISALES@ARCHIRONDESIGN.COM ✛ ARCHIRONDESIGN.COM 43
