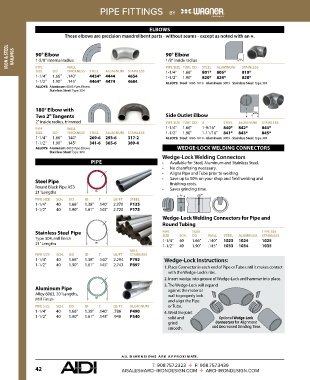

Page 44 - CATALOG

PIPE FITTINGS BY

ELBOWS
These elbows are precision mandrel bent parts - without seams - except as noted with an .
*
IRON & STEEL RAILINGS 90° Elbow 90° Elbow 3 /4"

1/8" inside radius
1-5/8" internal radius
PIPE
THICKNESS
SIZE OD WALL STEEL ALUMINUM STAINLESS PIPE SIZE TUBE OD STEEL ALUMINUM STAINLESS
810*
1-1/4"
801*
806*
1.66"
1-1/4" 1.66" .140" 4434* 4444 4654 1-1/2" 1.90" 820* 824* 828*
1-1/2" 1.90" .145" 4464* 4474 4684 ALLOYS: Steel: 1006-1010 - Aluminum: 3003 - Stainless Steel: Type 304
ALLOYS: Aluminum: 6063 Pipe Elbows
Stainless Steel: Type 304
180° Elbow with 3 /4"
Two 2" Tangents Side Outlet Elbow a
2" inside radius, trimmed PIPE SIZE TUBE OD A STEEL ALUMINUM STAINLESS
PIPE WALL 1-1/4" 1.66" 1-9/16" 840* 842* 844*
SIZE OD THICKNESS STEEL ALUMINUM STAINLESS 1-1/2" 1.90" 1-11/16" 841* 843* 845*
1-1/4" 1.66" .140" 269-6 293-6 317-2 ALLOYS: Steel: 1006-1010 - Aluminum: 3003 - Stainless Steel: Type 304
1-1/2" 1.90" .145" 341-6 365-6 389-4
ALLOYS: Aluminum: 6063 Pipe Elbows WEDGE-LOCK WELDING CONNECTORS
Stainless Steel: Type 304
Wedge-Lock Welding Connectors
PIPE • Available for Steel, Aluminum and Stainless Steel.
• No chamfering necessary.
• Aligns Pipe and Tube prior to welding.
t
• Save up to 50% on your shop and field welding and
Steel Pipe finishing costs.
Round Black Pipe A53 • Saves grinding time.
21' Lengths OD
3 /4" 1 /8"
PIPE SIZE SCH. OD ID T LB/FT STEEL
1-1/4" 40 1.66" 1.38" .140" 2.270 P135
1-1/2" 40 1.90" 1.61" .145" 2.720 P175
Wedge-Lock Welding Connectors for Pipe and
t
Round Tubing
Stainless Steel Pipe PIPE SCH. TUBE WALL STEEL ALUMINUM TYPE 304
OD
SIZE
STAINLESS
Type 304, mill finish 1-1/4" 40 1.66" .140" 1023 1024 1025
21' Lengths OD 1-1/2" 40 1.90" .145" 1033 1034 1035
MILL
PIPE SIZE SCH. OD ID T LB/FT STAINLESS
1-1/4" 40 1.66" 1.38" .140" 2.294 P792 Wedge-Lock Instructions:
1-1/2" 40 1.90" 1.61" .145" 2.743 P897
1. Place Connector in each end of Pipe or Tube until it makes contact
with the Wedge-Lock’s ribs.
t 2. Insert wedge into groove of Wedge-Lock and hammer into place.
3. The Wedge-Lock will expand
Aluminum Pipe against the material
Alloy 6063, 20' Lengths, wall to properly lock
Mill Finish OD and align the Pipe
PIPE SIZE SCH. OD ID T LB/FT ALUMINUM or Tube.
1-1/4" 40 1.66" 1.38" .140" .786 P490 4. Weld the joint
1-1/2" 40 1.90" 1.61" .145" .940 P540 solid and Optional Wedge-Lock
grind Connectors for Alignment
smooth. and Decreased Grinding Time.

A LL DIMENSIONS ARE APPR O XIM ATE .
