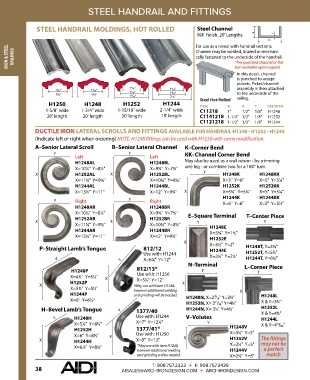

Page 40 - CATALOG

STEEL HANDRAIL AND FITTINGS

STEEL HANDRAIL MOLDINGS, HOT ROLLED Steel Channel
Mill Finish, 20' Lengths a t
b
For use as a reveal with handrail sections.
IRON & STEEL RAILINGS Channel may be welded, brazed or mechani-
cally fastened to the underside of the handrail.
*Pre-punched channel or flat
bar available upon request
In this detail, channel
is punched to accept
pickets. Picket/channel
1¹/16" assembly is then attached
13/32" 1¹/16" 1⁵/16" 1⁵/16"
1⅝" 1¾" 1¹⁵/16" 1⁹/16" to the underside of the
2¼"
railing.
H1250 H1248 H1252 H1244 Steel Hot-Rolled A T USE WITH
ITEM
B
1-5/8" wide 1-3/4" wide 1-15/16" wide 2-1/4" wide C11218 1" 1/2" 1/8" H1248
20' length 20' length 20' length 19' length C1141218 1-1/4" 1/2" 1/8" H1252
C1121218 1-1/2" 1/2" 1/8" H1244
DUCTILE IRON LATERAL SCROLLS AND FITTINGS AVAILABLE FOR HANDRAIL H1248 - H1252 - H1244
(Indicate left or right when ordering) NOTE: H1248 fittings can be used with H1250 with some modification.
A–Senior Lateral Scroll B–Senior Lateral Channel K–Corner Bend
Y Y KK–Channel Corner Bend
Left Left
H1248AL H1248BL May also be used as a wall return - by trimming
X=10¼" Y=8½" X=9½" Y=7¾" one leg - or combine two for a 180° turn.
X H1252AL X H1252BL Y H1248K H1248KK
X=11¾" Y=9⅝" X=10⅝" Y=8⅝" X=5" Y=6" X=5" Y=5¼"
H1244AL H1244BL H1252K H1252KK
X=13⅛" Y=11" X=12" Y=9¾" X X=5¾" Y=5¾" X=5" Y=5¼"
Y Right Y Right H1244K H1244KK
X=6" Y=6"
X=5" Y=5½"
H1248AR H1248BR
X=10¼" Y=8½" X=9½" Y=7¾" E–Square Terminal T–Center Piece
H1252AR H1252BR
X X Y Y
X=11¾" Y=9⅝" X=10⅝" Y=8⅝" H1248E
H1244AR H1244BR X=3⅜" Y=1¾"
X=13⅛" Y=11" X=12" Y=9¾" H1252E
X X=3½" Y=2"
P–Straight Lamb’s Tongue 812/12 H1244E H1248T, Y=3⅜"
Use with: H1244 X=3½" Y=2¼" H1252T, Y=5⅞"
Y Y X=6¾" Y=12" H1244T, Y=6⅜"
N–Terminal L–Corner Piece
H1248P 812/13* Y Y
X=4½" Y=5½" X Use with: H1250
H1252P X=5¼" Y=12" X
X *May use with item H1248,
X=5½" Y=5½" however additional welding X
H1244P and grinding will be needed. H1248L
X=6" Y=6½" H1248N, X=23/₁₆" Y=3¾"
H1252N, X= 2¹¹/₁₆" Y=4¼" X & Y=3¾"
H–Bevel Lamb’s Tongue Y 1377/40 H1244N, X= 3¼" Y=4¾" H1252L
X & Y=4¼"
Y H1248H Use with: H1244 V–Volutes H1244L
X=5½" Y=8½" X=7" Y=12½" Y H1248V X & Y=4¹³/₁₆"
H1252H 1377/41* X=3¼" Y=5"
X=6" Y=8½" X Use with: H1250 X
X H1244H X=9" Y=13" H1252V The fittings
X=6½" Y=8¾" *May use with item H1248, X=3½" Y=5" may not be
however additional welding H1244V a perfect
and grinding will be needed. X=2¾" Y=5" match
