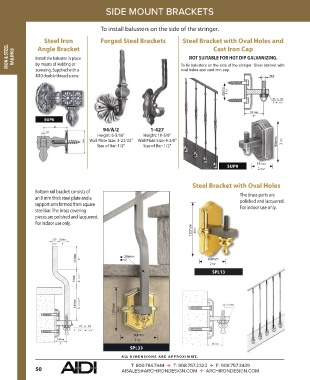

P. 52
SIDE MOUNT BRACKETS
To install balusters on the side of the stringer.
Steel Iron Forged Steel Brackets Steel Bracket with Oval Holes and
IRON & STEEL RAILINGS Install the baluster in place NOT SUITABLE FOR HOT DIP GALVANIZING.
Angle Bracket
Cast Iron Cap
by means of welding or
screwing. Supplied with a To fix balusters on the side of the stringer: Steel bracket with
oval holes and cast iron cap.
M10 double thread screw.
45mm 1 4 /5”
SUP66
SUP
94/A/2 1-427
Height: 6-5/16" Height: 10-5/8"
Wall Plate Size: 3-23/32" Wall Plate Size: 4-3/8" 90mm 3 1 /2”
Size of Bar: 1/2" Size of Bar: 1/2"
SUP9 55 mm
2 3 /16”
Steel Bracket with Oval Holes
Bottom rail bracket consists of
an 8 mm thick steel plate and a The brass parts are
support arm formed from square polished and lacquered.
steel bar. The brass covering For indoor use only.
pieces are polished and lacquered.
For indoor use only.
120mm 4 3 /4”
20mm
3 /4" 60mm
2 3 /8”
SPL13
120mm 4 3 /4"
90mm
3 1 /2"
SPL33
A LL DIMENSIONS ARE APPR O XIM ATE .
