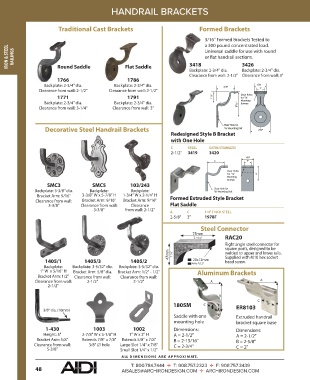

P. 50
HANDRAIL BRACKETS
Traditional Cast Brackets Formed Brackets
3/16" Formed Brackets Tested to
a 300 pound concentrated load.
IRON & STEEL RAILINGS Universal saddle for use with round
or flat handrail sections.
3418
Flat Saddle
Round Saddle
Backplate: 2-3/4" dia. 3426
Backplate: 2-3/4" dia.
Clearance from wall: 2-1/2" Clearance from wall: 3"
1766 1786
Backplate: 2-3/4" dia. Backplate: 2-3/4" dia. 2 1 /2" 1 3 /4"
Clearance from wall: 2-1/2" Clearance from wall: 2-1/2" 1"
1771 1791 1 1 /2" Clear Holes
for 1 /4"
Backplate: 2-3/4" dia. Backplate: 2-3/4" dia. 3 9 /16 " Mounting
Screws
Clearance from wall: 3-1/4" Clearance from wall: 3"
Clear Hole for
Dec 3 /8" Mounting Bolt 2 3 /4"
Decorative Steel Handrail Bracketsorative Steel Handrail Brackets
Redesigned Style B Bracket
with One Hole
C STEEL SATIN STAINLESS
2-1/2" 3419 3420
1 3 /4"
c 1"
Clear Holes
for 1 /4" a
Mounting
Screws
SMC3 SMC5 103/243
Backplate: 3-3/8" dia. Backplate: Backplate: Clear Hole for
3 /8" Mounting Bolt
Bracket Arm: 9/16" 3-3/8" W x 5-7/8" H 1-3/4" W x 2-1/4" H
Clearance from wall: Bracket Arm: 9/16" Bracket Arm: 9/16" Formed Extruded Style Bracket
3-3/8" Clearance from wall: Clearance Flat Saddle
3-3/8" from wall: 2-1/2"
A C 1/4" THICK STEEL
2-5/8" 3" 1978F
Steel Connector
75mm
2 15 /16” RAC20
Right angle steel connector for
square posts, designed to be
47mm 1 7 /8” welded to upper and lower rails.
Supplied with M10 hex socket
1405/1 1405/3 1405/2 20x12mm head screw.
3 /4 x 1 /12”
Backplate: Backplate: 3-5/32" dia. Backplate: 3-5/32" dia.
1" W x 5/16" H Bracket Arm: 5/8" dia. Bracket Arm: 1/2" - 1/2" Aluminum Brackets
Bracket Arm: 1/2" Clearance from wall: Clearance from wall:
Clearance from wall: 2-1/2" 2-1/2" A A
2-1/2"
B
B
C
1805M C ER8103
3/8" dia. (10mm)
Saddle with one Extruded handrail
mounting hole bracket square base
1-430 1003 1002 Dimensions: Dimensions:
Height: 5" 2-7/8" W x 3-1/8" H 1" W x 2" H A = 2-1/2" A = 2-1/2"
Bracket Arm: 5/8" Extends 7/8" x 7/8" Extends 5/8" x 7/8" B = 2-15/16" B = 2-5/8"
Clearance from wall: 3/8" hole Large Slot 1/4" x 7/8" C = 2-3/4"
5-3/8" Small Slot 1/4" x 1/2" C = 2"
A LL DIMENSIONS ARE APPR O XIM ATE .
