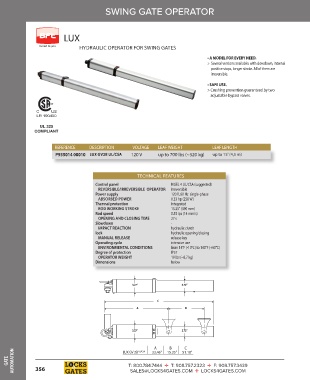

Page 358 - Catalog

SWING GATE OPERATOR

LUX

HYDRAULIC OPERATOR FOR SWING GATES
• A MODEL FOR EVERY NEED.
> Several versions available: with slowdown, internal
positive stops, longer stroke. All of them are
irreversible.

• SAFE USE.
> Crushing prevention guaranteed by two
adjustable bypass valves.

REFERENCE DESCRIPTION VOLTAGE LEAF WEIGHT LEAF LENGTH
P935014 00010 LUX GV2B UL/CSA 120 V up to 700 lbs (~320 kg)
up to 15' (4,5 m)

TECHNICAL FEATURES

Control panel RIGEL 4 UL/CSA (suggested)
REVERSIBLE/IRREVERSIBLE OPERATOR irreversible
Power supply 120 V, 60 Hz single-phase
ABSORBED POWER 0.33 hp (250 W)
Thermal protection integrated
ROD WORKING STROKE 15.35" (390 mm)
Rod speed 0.55 ips (14 mm/s)
OPENING AND CLOSING TIME 27 s
Slowdown -
IMPACT REACTION hydraulic clutch
lock hydraulic opening/closing
MANUAL RELEASE release key
Operating cycle intensive use
ENVIRONMENTAL CONDITIONS from 14°F (-10°C) to 140°F (+60°C)
Degree of protection IP57
OPERATOR WEIGHT 19 lbs (~8,7 kg)
Dimensions below

3.27” 2.72”

C
A B

3.27” 2.72”

C
B
A 15.35" 51.18"
AUTOMATION 356 T: 800.784.7444 T: 908.757.2323 F: 908.757.3439
33.46"
LUX GV 2B
UL/CSA
