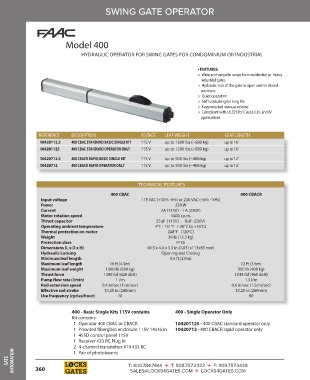

Page 362 - Catalog

SWING GATE OPERATOR

Model 400

HYDRAULIC OPERATOR FOR SWING GATES FOR CONDOMINIUM OR INDUSTRIAL

• FEATURES:
> Wide and versatile range from residential to heavy
industrial gates
> Hydraulic lock of the gate in open and/or closed
positions
> Quiet operation
> Self lubricating for long life
> Keyprotected manual release
> Compliant with UL325 for Class I,II, III, and IV
applications

REFERENCE DESCRIPTION VOLTAGE LEAF WEIGHT LEAF LENGTH
10420112.5 400 CBAC STANDARD BASIC SINGLE KIT 115 V up to 1300 lbs (~589 kg) up to 16'
104201125 400 CBAC STANDARD OPERATOR ONLY 115 V up to 1300 lbs (~589 kg) up to 16'
10420712.5 400 CBACR RAPID BASIC SINGLE KIT 115 V up to 900 lbs (~408 kg) up to 12'
10420712 400 CBACR RAPID OPERATOR ONLY 115 V up to 900 lbs (~408 kg) up to 12'

TECHNICAL FEATURES
400 CBAC 400 CBACR
Input voltage 115 VAC (+10% -6%) or 230 VAC (+6% -10%)
Power 220 W
Current 2A (115V) - 1 A (230V)
Motor rotation speed 1400 r.p.m.
Thrust capacitor 25uF (115V) - 8uF (230V)
Operating ambient temperature 4°F - 131°F (-20°C to +55°C)
Thermal protection on motor 248°F (120°C)
Weight 29 lb (13.2 kg)
Protection class IP 55
Dimensions (L x D x H) 40.5 x 4.4 x 3.3 in (1,031x113x85 mm)
Hydraulic Locking Opening and Closing
Minimum leaf length 9.5 ft (2.9m)
Maximum leaf length 16 ft (4.9m) 12 ft (3.6m)
Maximum leaf weight 1300 lb (589 kg) 900 lb (408 kg)
Thrust force 1390 Ibf (620 daN) 1045 Ibf (465 daN)
Pump flow rate (I/min) 1 l/m 1.5 l/m
Rod extension speed 0.4 in/sec (1cm/sec) 0.6 in/sec (1.5cm/sec)
Effective rod stroke 10.25 in (260mm) 10.25 in (260mm)
Use frequency (cycles/hour) 70 80

400 - Basic Single Kits 115V contains 400 - Single Operator Only
Kit contains:
1 Operator 400 CBAC or CBACR 104201125 - 400 CBAC standard operator only
1 Prewired fiberglass enclosure 115V 14x16 in 10420712 - 400 CBACR rapid operator only
1 455D control panel 115V
1 Receiver 433 RC Plug In
2 4-channel transmitter XT4 433 RC
AUTOMATION 360 T: 800.784.7444 T: 908.757.2323 F: 908.757.3439
1 Pair of photobeams
