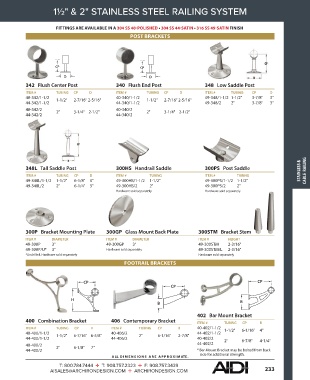

Page 235 - Catalog

1½" & 2" STAINLESS STEEL RAILING SYSTEM

FITTINGS ARE AVAILABLE IN A 304 SS 40POLISHED • 304 SS 44SATIN • 316 SS 49SATIN FINISH
POST BRACKETS

CP CP
D D
342 Flush Center Post 340 Flush End Post 348 Low Saddle Post
ITEM # TUBING CP D ITEM # TUBING CP D ITEM # TUBING CP D
40-342/1-1/2 1-1/2" 2-7/16" 2-5/16" 40-340/1-1/2 1-1/2" 2-7/16" 2-5/16" 49-348/1-1/2 1-1/2" 3-7/8" 3"
44-342/1-1/2 44-340/1-1/2 49-348/2 2" 3-7/8" 3"
40-342/2 2" 3-1/4" 2-1/2" 40-340/2 2" 3-1/4" 2-1/2"
44-342/2 44-340/2

348L Tall Saddle Post 300HS Handrail Saddle 300PS Post Saddle STAINLESS & CABLE RAILING

ITEM # TUBING CP D ITEM # TUBING ITEM # TUBING
49-348L/1-1/2 1-1/2" 6-1/8" 3" 49-300HS/1-1/2 1-1/2" 49-300PS/1-1/2 1-1/2"
49-348L/2 2" 6-1/4" 3" 49-300HS/2 2" 49-300PS/2 2"
Hardware sold separately Hardware sold separately

300P Bracket Mounting Plate 300GP Glass Mount Back Plate 300STM Bracket Stem
ITEM # DIAMETER ITEM # DIAMETER ITEM # HEIGHT
49-300P 3" 49-300GP 3" 49-300STM 2-3/16"
49-300P/U* 3" Hardware sold separately 49-300STM/L 2-3/16"
*Undrilled. Hardware sold separately Hardware sold separately
FOOTRAIL BRACKETS

CP CP
CP

H B
B
402 Bar Mount Bracket
400 Combination Bracket 406 Contemporary Bracket ITEM # TUBING CP B
ITEM # TUBING CP H ITEM # TUBING CP B 40-402/1-1/2 1-1/2" 6-1/16" 4"
40-400/1-1/2 1-1/2" 6-7/16" 6-5/8" 40-406/2 2" 6-1/16" 2-7/8" 44-402/1-1/2
44-400/1-1/2 44-406/2 40-402/2 2" 6-7/8" 4-1/4"
40-400/2 2" 6-1/8" 7" 44-402/2
44-400/2 * Bar Mount Bracket may be bolted from back
A LL DIMENSIONS ARE APPR O XIM ATE . side for additional strength.
