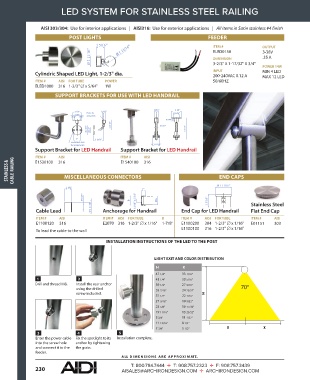

LED SYSTEM FOR STAINLESS STEEL RAILING

AISI 303/304: Use for interior applications | AISI316: Use for exterior applications | All items in Satin stainless #4 finish

POST LIGHTS GLASS CLAMPS FEEDER
1 5/16” Ø 1 11/16” ITEM # OUTPUT
Ø 1 11/16” ELED0150 3-38V
.35 A
DIMENSION
3-2/3" X 1-17/32" X 3/4"
POWER 14W
INPUT MIN 4 LED
Cylindric Shaped LED Light, 1-2/3" dia. 200-240VAC 0.12 A MAX 12 LED
ITEM # AISI FOR TUBE POWER 50/60HZ
ELED1000 316 1-2/3" x 5/64" 1W
SUPPORT BRACKETS FOR USE WITH LED HANDRAIL

15/16” 2 1/2”
2 1/2” Ho l e s f o r 15/16” 1 11/16”
1 5/8”
7/16” 7/16” s c r e w s M5
Ø 1/4”
2 15/16” Ø 1/2”
Ø 2 3/4” Ø 1/2” 5 7/16”
2” 2 15/16”
c o u n t e r s u n k h o l e
f o r s c r e w s t o M8 Ø 1 11/16”
Support Bracket for LED Handrail Support Bracket for LED Handrail
ITEM # AISI ITEM # AISI
E1540100
STAINLESS & CABLE RAILING MISCELLANEOUS CONNECTORS END CAPS
E1530100
316
316

1 1/8” Ø 1 11/16”
1”
Ø 5/16” B 5/16” ØA 1 5/16”
Ø 1 11/16” 11/16” x Stainless Steel
Cable Lead Anchorage for Handrail End Cap for LED Handrail Flat End Cap
ITEM # AISI ITEM # AISI FOR TUBE B ITEM # AISI FOR TUBE ITEM # AISI
E1100120 316 E2070 316 1-2/3" x 1/16" 1-7/8" E1100200 304 1-2/3" x 1/16" E01151 303
To lead the cable to the wall E1100100 316 1-2/3" x 1/16"
INSTALLATION INSTRUCTIONS OF THE LED TO THE POST

LIGHT EXIT AND COLOR DISTRIBUTION
H X
47 1/4” 33 1/16”
1 2 43 1/4” 30 5/16”
Drill and thread M8. Install the rear anchor 39 1/2” 27 9/16”
using the drilled 35 7/16” 24 25/32” 70°
screw included. H
31 1/2” 22 1/16”
27 9/16” 19 9/32”
23 5/8” 16 17/32”
19 11/16” 13 25/32”
5 3/4” 11 1/32”
11 13/16” 8 1/4”
7 7/8” 5 1/2” X X
3 4 5
Enter the power cable Fix the spotlight to its Installation complete.
into the screw hole anchor by tightening
and connect it to the the grain.
feeder.
A LL DIMENSIONS ARE APPR O XIM ATE .
